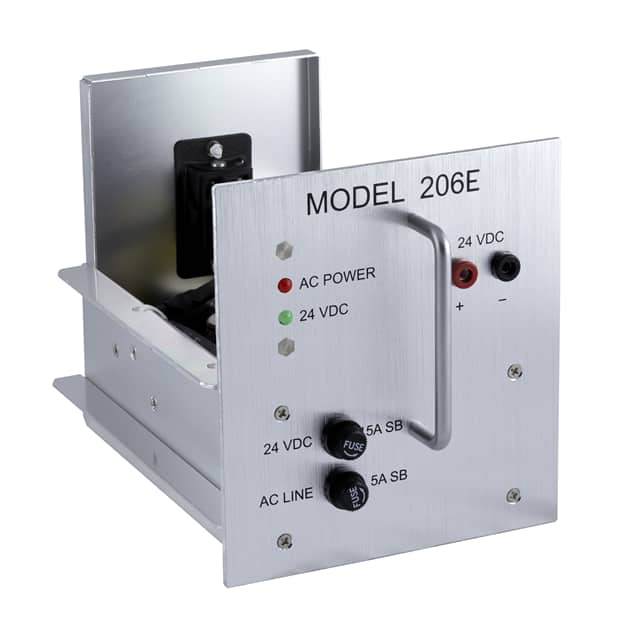

The Jasper Electronics TC206E is a switching power supply designed for traffic control cabinets, specifically built to the specifications of the State of California Department of Transportation (CalTrans) Transportation Electrical Equipment Specification (TEES) November 05, 2020. It delivers 240 Watts of DC power through a single, regulated +24V DC output at 10A.
This open frame unit is designed for rack mounting in TEES type PDA assemblies commonly found in traffic signal control cabinets. It provides full output regulation across AC line voltage and load changes over a wide operating temperature range of -34°C to +74°C. Power Factor Correction is included to reduce peak AC line input current.
The TC206E has a functional AC input range of 80V AC to 150V AC and 47 to 63Hz. It meets BABAA Compliant Standard and is suitable for use in Traffic Intersection Control Systems and LED Road Signs. Key electrical specifications include high efficiency (>82% @ 115V), low ripple and noise, and comprehensive protection features like under-voltage protection and over-voltage protection.
Designed for high reliability and efficiency, the TC206E is an ideal choice for demanding applications within traffic management infrastructure. Its robust design ensures stable performance under challenging environmental conditions.
The TC206E provides a single, regulated 24.0V DC output at 10.0A, with a total power rating not exceeding 240 Watts.
The TC206E operates across a wide temperature range of -34°C to +74°C.
The TC206E supports a functional AC input range of 80V AC to 150V AC.
The TC206E is listed as RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the TC206E is 1.
The TC206E features an open frame design.
