Mfr Part #:

TB9120AFTG(EL)

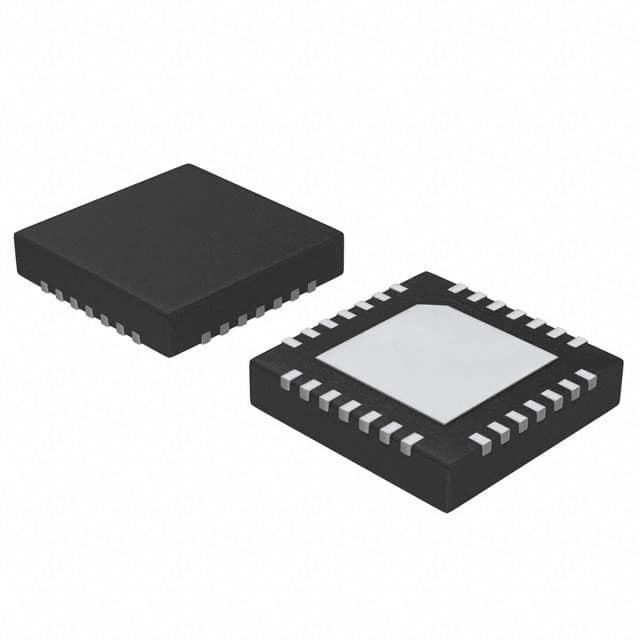

Name: TB9120AFTG(EL)
Brand: Toshiba
SKU: TB9120AFTG(EL)

Mfr Name: Toshiba

Description:

AEC-Q100 BIPOLAR STEPPER MOTOR D

Stock on Request

TB9120AFTG(EL) Description

Short technical summary and product information.

AEC-Q100 BIPOLAR STEPPER MOTOR D

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Motor Drivers, Controllers
Manufacturer Name	Toshiba
Applications	Automotive
Current	2.5A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel, PWM
Motor Type	Bipolar
Mounting Type	Surface Mount, Wettable Flank
Operating Temperature	-40°C ~ 125°C (TA)
Output Configuration	Pre-Driver - Half Bridge (4)
Step Resolution	1, 1/2, 1/8, 1/16, 1/32
Supplier Device Package	28-VQFN (6x6)
Technology	NMOS, PMOS
Voltage	4.5V ~ 7V, 7V ~ 18V
