Mfr Part #:

TB6562AFG,8,EL

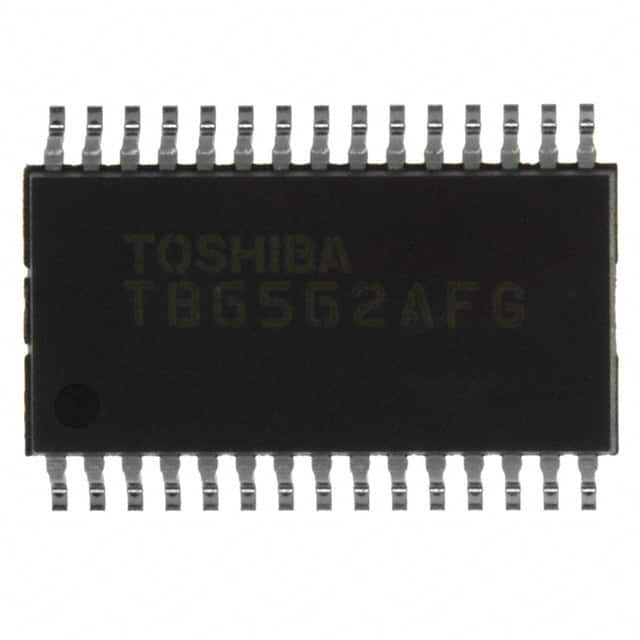

Name: TB6562AFG,8,EL
Brand: Toshiba
SKU: TB6562AFG,8,EL

Mfr Name: Toshiba

Description:

IC MTR DRV BIPOLAR 10-34V 30SSOP

Stock on Request

TB6562AFG,8,EL Description

Short technical summary and product information.

IC MTR DRV BIPOLAR 10-34V 30SSOP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Motor Drivers, Controllers
Manufacturer Name	Toshiba
Applications	General Purpose
Current	1.5A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type	Bipolar
Mounting Type	Surface Mount
Operating Temperature	-20°C ~ 85°C (TA)
Output Configuration	Half Bridge (4)
Step Resolution	1, 1/2, 1/4
Supplier Device Package	30-SSOP
Technology	DMOS
Voltage	10V ~ 34V
