Mfr Part #:

TB6560AHQ,8

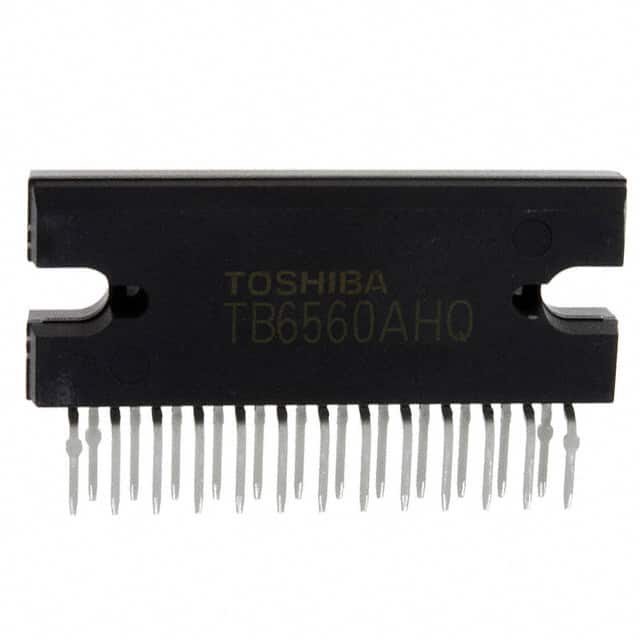

Name: TB6560AHQ,8
Brand: Toshiba
SKU: TB6560AHQ,8

Mfr Name: Toshiba

Description:

IC MTR DRV BIPLR 4.5-5.5V 25HZIP

Stock on Request

TB6560AHQ,8 Description

Short technical summary and product information.

IC MTR DRV BIPLR 4.5-5.5V 25HZIP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

TB6560AHQ

Toshiba Semiconductor and Storage

IC MTR DRV BIPLR 4.5-5.5V 25HZIP

Category	Motor Drivers, Controllers
Manufacturer Name	Toshiba
Applications	General Purpose
Current	3A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type	Bipolar
Mounting Type	Through Hole
Operating Temperature	-30°C ~ 85°C (TA)
Output Configuration	Half Bridge (4)
Step Resolution	1, 1/2, 1/4, 1/8, 1/16
Supplier Device Package	25-HZIP
Technology	Power MOSFET
Voltage	4.5V ~ 34V
