Mfr Part #:

TB6560AFG,8

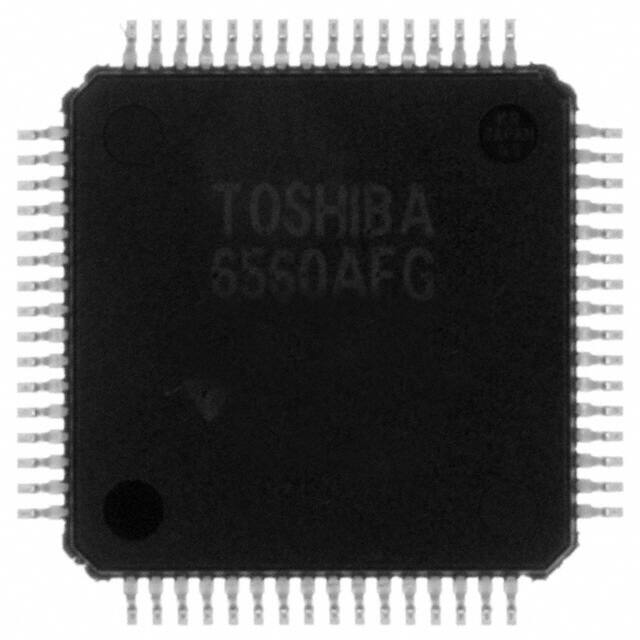

Name: TB6560AFG,8
Brand: Toshiba
SKU: TB6560AFG,8

Mfr Name: Toshiba

Description:

IC MOTOR DRIVER PAR 64HQFP

Stock on Request

TB6560AFG,8 Description

Short technical summary and product information.

IC MOTOR DRIVER PAR 64HQFP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Motor Drivers, Controllers
Manufacturer Name	Toshiba
Applications	General Purpose
Current	1.5A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type	Bipolar
Mounting Type	Surface Mount
Operating Temperature	-30°C ~ 85°C
Output Configuration	Half Bridge (4)
Supplier Device Package	64-HQFP (10x10)
Voltage	4.5V ~ 34V
