Mfr Part #:

TB62209FG,EL

Mfr Name: Toshiba

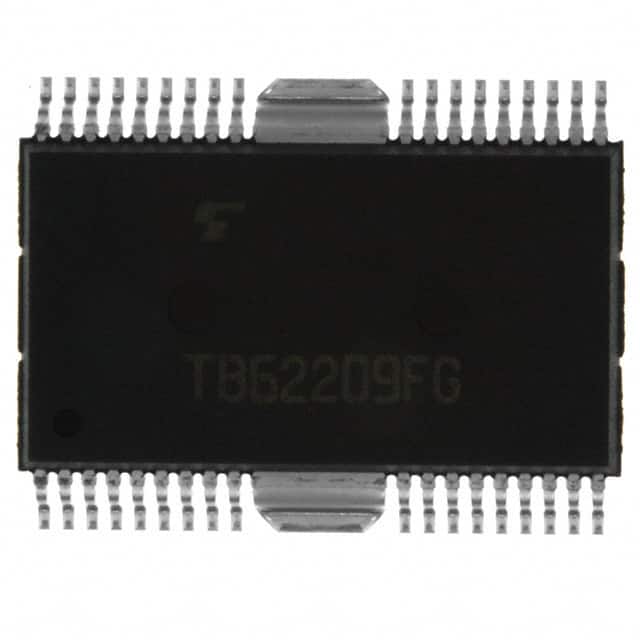

The Toshiba TB62209FG,EL is a bipolar stepping motor driver IC designed for low-torque ripples and high efficiency. It features a 36-pin HSOP package.

✓ Total Stock: 2 pcs

$ Price Range: $2.25

TB62209FG,EL Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TB62209FG,EL Description

Short technical summary and product information.

The Toshiba TB62209FG,EL is a monolithic BiCD stepping motor driver IC that utilizes PWM chopper technology for micro-step pseudo sine wave driving. This design minimizes torque ripple and oscillation, enabling efficient and smooth motor control. The IC integrates a decoder for CLK input and 4-bit DA converters for micro-step control, supporting resolutions from full step to 1/16th step.

Key electrical specifications include a maximum output voltage of 40V and a maximum output current of 1.8A per phase. It offers a low ON-resistance of 0.5 Ω (typ.) at 25°C and 1.0A, contributing to lower power dissipation compared to bipolar transistor outputs. The operating voltage range is between 13V to 34V, with a typical current rating of 1.5A.

Protection features include built-in ISD, TSD, VDD & VM power monitor (reset) circuits. The TB62209FG,EL supports Mixed Decay mode for adjustable attenuation ratios and can achieve high-speed chopping up to 100 kHz. It is housed in a 36-pin power flat package (HSOP36-P-450-0.65) suitable for surface mounting.

This device is RoHS3 compliant and has an MSL rating of 1. It is designed for applications requiring precise control of bipolar stepping motors.

TB62209FG,EL Quick Information

Product Type: Stepping Motor Driver IC

Canonical Name: TB62209FG Stepping Motor Driver IC

Subcategory: Specialized ICs

TB62209FG,EL Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TB62209FG,EL Estimated Pricing

Qty	Low	High
1+	$2.25	$2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

TB62209FG,EL Features

Drives bipolar stepping motors with micro-step control.
Low ON-resistance of 0.5 Ω at 25°C.
Output voltage up to 40V.
Output current up to 1.8A per phase.
Integrated protection and charge pump circuits.

TB62209FG,EL Applications

Ideal for low-torque ripple applications.
Enables high-efficiency motor control.
Suitable for precise positioning systems.
Used in automation and robotics.

TB62209FG,EL FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum output voltage for the TB62209FG,EL?

The maximum output voltage is 40V.

What is the maximum output current per phase?

The maximum output current per phase is 1.8A.

What is the typical ON-resistance of the TB62209FG,EL?

The typical ON-resistance is 0.5 Ω at Tj = 25°C and 1.0A.

What is the operating temperature range?

The operating temperature range is -40°C to 150°C (TJ).

What package type is the TB62209FG,EL supplied in?

It is supplied in a 36-pin HSOP package.

What is the RoHS status of this component?

This component is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL)?

The Moisture Sensitivity Level is 1.

Category	Motor Drivers, Controllers
Manufacturer Name	Toshiba
Applications	General Purpose
Current	1.5 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type	Bipolar
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 150°C
Output Configuration	Half Bridge (4)
Output Current	1.8 A/phase
Output Voltage	40 V
SVHC Present	Not Present
Step Resolution	1, 1/2, 1/4, 1/8, 1/16
Supplier Device Package	36-HSOP
Technology	DMOS
Voltage	13 V ~ 34 V
