TAS5720MRSMR The Texas Instruments TAS5720MRSMR is a high-efficiency mono Class-D audio power amplifier. It delivers 20W continuous output power into a 4 Ohm load.
Mfr Part #:

TAS5720MRSMR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TAS5720MRSMR is a high-efficiency mono Class-D audio power amplifier. It delivers 20W continuous output power into a 4 Ohm load.
✓ Total Stock: 6,251 pcs

TAS5720MRSMR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
6,251 pcs
On Request
6251 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TAS5720MRSMR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Conflict Minerals
Control Interface
Lead Spacing
Lead Style
Load
Operating Temperature Range
Output Power
Protection
Storage Temperature
Tape & Reel
View Similar Products (0)

TAS5720MRSMR Description

Short technical summary and product information.

The TAS5720MRSMR from Texas Instruments is a mono Class-D audio amplifier designed for high efficiency and transient power capability. It operates with a power stage supply voltage ranging from 4.5V to 26.4V and supports a minimum load of 4 Ohms.



This amplifier features a digital input and TDM audio interface, allowing up to 8 channels to share the same bus at 32-bit resolution and 48 kHz sample rate. Control is managed via I2C with 8 selectable addresses. The device offers thermal and short-circuit protection.

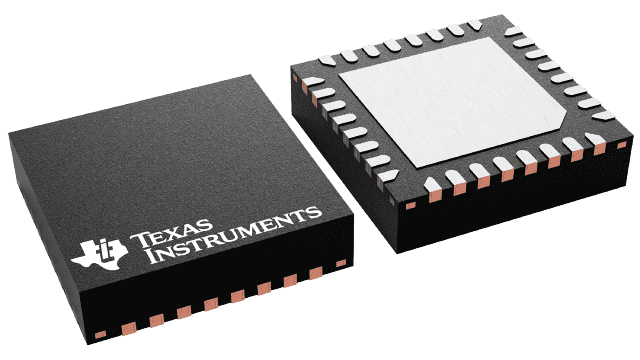

Packaged in a 32-pin VQFN (4mm x 4mm) for a compact PCB footprint, the TAS5720MRSMR is suitable for applications requiring efficient audio amplification in space-constrained designs. Its operating temperature range is -25°C to 85°C.

TAS5720MRSMR Quick Information

Product Type: Audio Amplifier
Series: TAS572x
Canonical Name: TAS5720MRSMR Digital Input Mono Class-D Audio Amplifier
Subcategory: Class-D Amplifier

TAS5720MRSMR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TAS5720MRSMR Features

  • Mono Class-D audio power amplifier.
  • 20W continuous output power.
  • 4.5V to 26.4V power supply range.
  • TDM audio input up to 8 channels.
  • 32-pin VQFN package.

TAS5720MRSMR Applications

  • High-efficiency audio amplification.
  • Space-constrained audio designs.
  • Applications requiring digital audio input.
  • Systems needing TDM bus sharing.

TAS5720MRSMR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the power supply voltage range for TAS5720MRSMR?

The power stage and analog supply voltage range is 4.5 V to 26.4 V.

What is the operating temperature range?

-25 °C to 85 °C.

What is the package type and pin count?

VQFN-32 (RSM package).

What is the output power of this amplifier?

20 W continuous into 4 Ω load.

What is the total harmonic distortion plus noise?

0.015% at 1 kHz.

What class is this amplifier?

Class-D.

What type of audio input does it support?

Digital input with TDM support up to 8 channels (32-bit, 48 kHz).
