Mfr Part #:

TAS5715PHPR

The Texas Instruments TAS5715PHPR is a 25-W stereo Class-D audio amplifier with digital input. It operates from an 8-V to 26-V PVDD supply.

✓ Total Stock: 22,713 pcs

$ Price Range: $3.69

TAS5715PHPR Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	22,600 pcs On Request	22600 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	113 pcs On Request	113 pcs	On Request	1	On Request	On Request	12+	On Request	On Request

TAS5715PHPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Texas Instruments
Mounting Type	Surface Mount
Operating Temperature	0 to 85 °C
SVHC Present	Not Present
Supply Voltage	3.3 V

View Similar Products (0)

TAS5715PHPR Description

Short technical summary and product information.

The Texas Instruments TAS5715PHPR is an open-loop Class-D audio amplifier designed for home audio, haptics, and piezo applications. It delivers 25-W into an 8-ohm load from an 18-V supply and supports 50-W in PBTL mode with a 4-ohm load. The amplifier features a wide PVDD range from 8 V to 26 V and requires only 3.3 V and PVDD for operation, eliminating the need for heatsinks due to its efficient Class-D operation.

This device includes advanced audio processing capabilities such as EQ, DRC, and headphone outputs. It supports sample rates from 8 kHz to 48 kHz via a serial audio interface (LJ/RJ/I2S). The TAS5715PHPR offers independent channel volume controls, programmable dynamic range control, and up to eight user-programmable biquads per channel for filter customization. It also includes DC blocking filters and PWM DC detection with CRC checksum for biquad coefficient integrity.

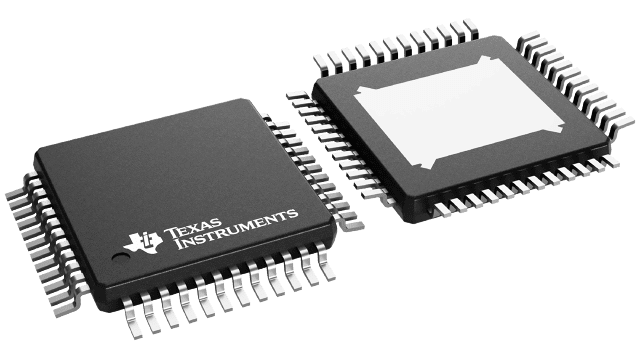

The TAS5715PHPR is available in a 48-pin HTQFP package measuring 7 mm x 7 mm, suitable for surface mounting. It operates within a temperature range of 0°C to 85°C. The amplifier includes thermal and short-circuit protection for enhanced reliability.

TAS5715PHPR Quick Information

Product Type: Class-D Audio Amplifier

Series: TAS5715

Canonical Name: Texas Instruments TAS5715PHPR Class-D Audio Amplifier

Subcategory: Class-D Amplifier

TAS5715PHPR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TAS5715PHPR Estimated Pricing

Qty	Low	High
1+	$3.69	$3.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

TAS5715PHPR Features

25-W stereo output into 8-ohm load.
Wide 8-V to 26-V PVDD supply range.
Efficient Class-D operation eliminates heatsinks.
Supports 8-kHz to 48-kHz sample rates.
Surface mount 48-pin HTQFP package.

TAS5715PHPR Applications

Ideal for home audio systems.
Suitable for TV and soundbar applications.
Used in haptic feedback systems.
Applicable for piezo driver circuits.

TAS5715PHPR FAQs

5 frequently asked questions generated from this part’s specifications.

What is the output power of the TAS5715PHPR?

The TAS5715PHPR provides 25-W into an 8-ohm load from an 18-V supply and supports 50-W in PBTL mode with a 4-ohm load.

What is the operating voltage range for the TAS5715PHPR?

The PVDD supply voltage range is from 8 V to 26 V, and it requires 3.3 V for operation.

What is the operating temperature range of the TAS5715PHPR?

The operating temperature range is 0°C to 85°C.

What package type is the TAS5715PHPR available in?

The TAS5715PHPR is available in a 48-pin HTQFP package suitable for surface mounting.

What sample rates does the TAS5715PHPR support?

It supports sample rates from 8 kHz to 48 kHz.
