| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,040 pcs
|
9040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Control Interface | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature Range | |
| SVHC Present | |
| Storage Temperature |
The Texas Instruments TAS5162DDV is a high-performance, integrated Class-D audio amplifier designed for demanding audio applications. It provides flexible power output options, including 2x160W stereo into 8 ohms or 1x300W mono into 4 ohms, both at 10% THD+N. The device operates with a wide power stage supply voltage range from 0V to 52.5V and an analog supply voltage between 10.8V and 13.2V.
Key electrical characteristics include a signal-to-noise ratio (SNR) greater than 110 dB (A-weighted) and a total harmonic distortion plus noise (THD+N) of less than 0.09% at 1 kHz. The amplifier utilizes a PWM input and a hardware control interface, simplifying integration into various audio systems. It is designed with integrated self-protection circuits for undervoltage, overtemperature, overload, and short circuit conditions, enhancing reliability.
The TAS5162DDV is available in two thermally enhanced package options: HSSOP (DKD) and HTSSOP (DDV). It is suitable for applications such as mini/micro audio systems, DVD receivers, and home theater systems. The high-efficiency power stage contributes to reduced power consumption and heat generation.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.70 | $9.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TAS5162DDV operates within a temperature range of 0°C to 70°C.

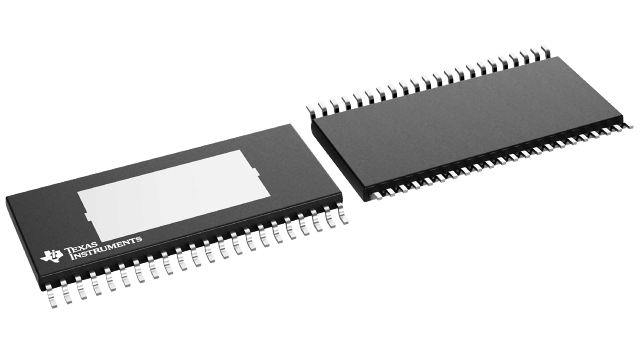

The TAS5162DDV is available in HSSOP (DKD) and HTSSOP (DDV) packages.
The TAS5162DDV can deliver 2x160 W into 8-ohm BTL, 2x210 W into 6-ohm BTL, or 1x300 W into 4-ohm PBTL.
The maximum power stage supply voltage for the TAS5162DDV is 52.5 V.
The maximum THD + N at 1 kHz for the TAS5162DDV is 0.09%.
The minimum load impedance supported by the TAS5162DDV is 3 Ω.
The SNR (A-Weighted, TAS5518 Modulator) of the TAS5162DDV is greater than 110 dB.
