TAS2562YFPR The Texas Instruments TAS2562YFPR is a 6.1W digital input smart amplifier featuring I/V sense for speaker protection and an integrated 11-V Class-H boost. It offers high performance with low distortion and noise.
Mfr Part #:

TAS2562YFPR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TAS2562YFPR is a 6.1W digital input smart amplifier featuring I/V sense for speaker protection and an integrated 11-V Class-H boost. It offers high performance with low distortion and noise.
✓ Total Stock: 3,235 pcs

TAS2562YFPR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,235 pcs
On Request
3235 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TAS2562YFPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Control Interface
Efficiency
Input Type
Lead Style
Load
Operating Temperature Range
PSRR
Package / Case
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

TAS2562YFPR Description

Short technical summary and product information.

The TAS2562YFPR from Texas Instruments is a high-performance Class-D audio amplifier designed for demanding audio applications. This smart amp integrates an 11-V Class-H boost converter and I/V sense technology for robust speaker protection and improved efficiency.



Key electrical specifications include an output power of 6.1 W into a 4 Ω load at 1% THD+N (3.6 V supply) and 5 W into an 8 Ω load. It boasts a low THD+N of 0.004% at 1 kHz, an idle channel noise of 15 µVrms, and an impressive SNR of 112.5 dB. The device operates with analog supply voltages ranging from 2.7 V to 5.5 V and power stage supplies from 2.7 V to 16 V, supporting load impedances as low as 3.2 Ω.

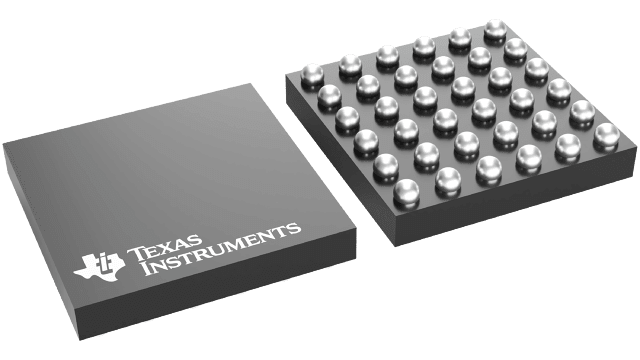

Featuring a digital input architecture, the TAS2562YFPR supports flexible user interfaces including I2S/TDM for 8 channels up to 96 kHz and I2C with 4 selectable addresses. It operates within a temperature range of -40 °C to 85 °C. The amplifier is housed in a compact 36-ball DSBGA (YFP) package with a 0.4 mm pitch, making it suitable for space-constrained designs.



Additional features include VBAT tracking, a peak voltage limiter with brown-out prevention, MCLK-free operation, and low pop and click characteristics. Spread-spectrum modulation is employed to reduce EMI, and the device includes thermal and over-current protection.

TAS2562YFPR Quick Information

Product Type: Audio Amplifier
Canonical Name: TAS2562YFPR 6.1-W Digital Input Smart Amp with I/V Sense
Subcategory: Class-D Amplifier

TAS2562YFPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TAS2562YFPR Features

  • 6.1W output power at 4 Ω
  • Low THD+N of 0.004% at 1 kHz
  • High SNR of 112.5 dB
  • Integrated 11-V Class-H boost
  • DSBGA package for space saving

TAS2562YFPR Applications

  • Ideal for mobile phone audio
  • Suitable for tablet and wearable devices
  • Used in portable speaker systems
  • Applicable in home audio systems
  • Enables compact soundbar designs

TAS2562YFPR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output power of TAS2562YFPR?

6.1W typical into 4Ω and 5W typical into 8Ω at 1% THD+N (3.6V supply).

What is the THD+N performance?

Typical THD+N is 0.004% at 1kHz.

What is the signal-to-noise ratio?

SNR is 112.5dB typical at 1% THD+N (8Ω).

What is the operating temperature range?

-40°C to 85°C.

What package types are available?

DSBGA (YFP) with 36-VFQFN exposed pad, 0.4mm pitch, package area 6.838mm².

What is the efficiency at 1W?

83.5% typical at 1W into 8Ω (VBAT=4.2V).

What digital interfaces does it support?

Digital I2S audio input and I2C control interface.
