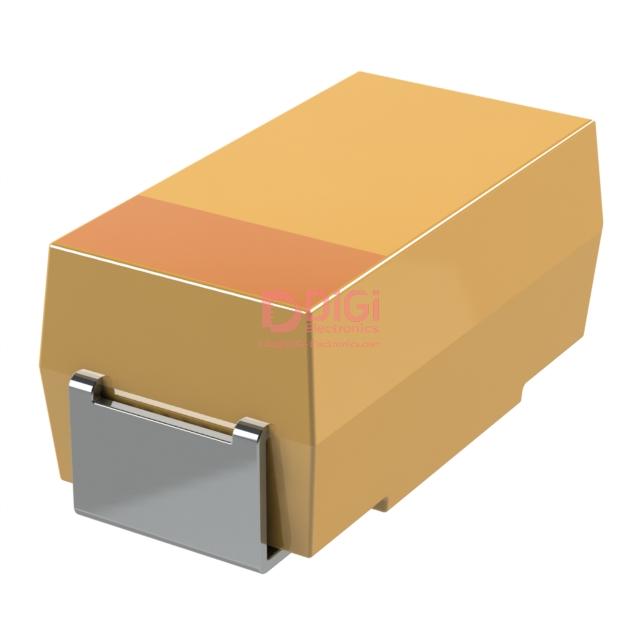

TAJC685M020R The Kyocera AVX TAJC685M020RNJ is a molded tantalum capacitor with a capacitance of 6.8µF and a rated voltage of 20V. It features a tolerance of ±20% and an ESR of 2 Ohm.
Mfr Part #:

TAJC685M020R

Available from 2 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The Kyocera AVX TAJC685M020RNJ is a molded tantalum capacitor with a capacitance of 6.8µF and a rated voltage of 20V. It features a tolerance of ±20% and an ESR of 2 Ohm.
✓ Total Stock: 9,000 pcs
$ Price Range: $1.16

TAJC685M020R Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
7,500 pcs
On Request
7500 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
1,500 pcs
On Request
1500 pcs On Request 1 On Request On Request 9813 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TAJC685M020R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
ESR (Equivalent Series Resistance)
Features
Mounting Type
Operating Temperature
Tolerance
Type
View Similar Products (0)

TAJC685M020R Description

Short technical summary and product information.

This Kyocera AVX TAJC685M020RNJ is a molded tantalum capacitor designed for surface mount applications. It offers a capacitance of 6.8µF with a tolerance of ±20% and a rated voltage of 20V. The capacitor has an Equivalent Series Resistance (ESR) of 2 Ohm and operates within a temperature range of -55°C to 125°C.



The component is packaged in a 2312 (6032 Metric) case size, measuring 0.236" L x 0.126" W with a maximum seated height of 0.110". It is supplied on Tape & Reel (TR) for automated assembly processes.



This general-purpose tantalum capacitor is suitable for various electronic circuits requiring stable capacitance and reliable performance. Its construction and specifications make it a versatile component for a wide range of applications.

TAJC685M020R Quick Information

Product Type: Tantalum Capacitor
Series: TAJ
Canonical Name: Kyocera AVX TAJC685M020RNJ Tantalum Capacitor 6.8µF 20V ±20%
Subcategory: Tantalum

TAJC685M020R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TAJC685M020R Estimated Pricing

Qty Low High
1+ $1.16 $1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

TAJC685M020R Features

  • Molded tantalum capacitor with 6.8µF capacitance.
  • Rated for 20V DC operation.
  • Features ±20% tolerance.
  • Surface mount package in 2312 size.
  • Supplied on Tape & Reel.

TAJC685M020R Applications

  • Suitable for general purpose applications.
  • Ideal for surface mount designs.
  • Used in circuits requiring stable capacitance.
  • Reliable performance in various electronics.

TAJC685M020R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the TAJC685M020RNJ capacitor?

The capacitance is 6.8 µF.

What is the rated voltage for the TAJC685M020RNJ capacitor?

The rated voltage is 20 V.

What is the tolerance of the TAJC685M020RNJ capacitor?

The tolerance is ±20%.

What is the ESR of the TAJC685M020RNJ capacitor?

The ESR is 2 Ohm.

What is the operating temperature range for this capacitor?

The operating temperature range is -55°C to 125°C.

What type of capacitor is the TAJC685M020RNJ?

It is a molded tantalum capacitor.

What is the package type for the TAJC685M020RNJ?

The package is 2312 (6032 Metric) and it is a surface mount type.
