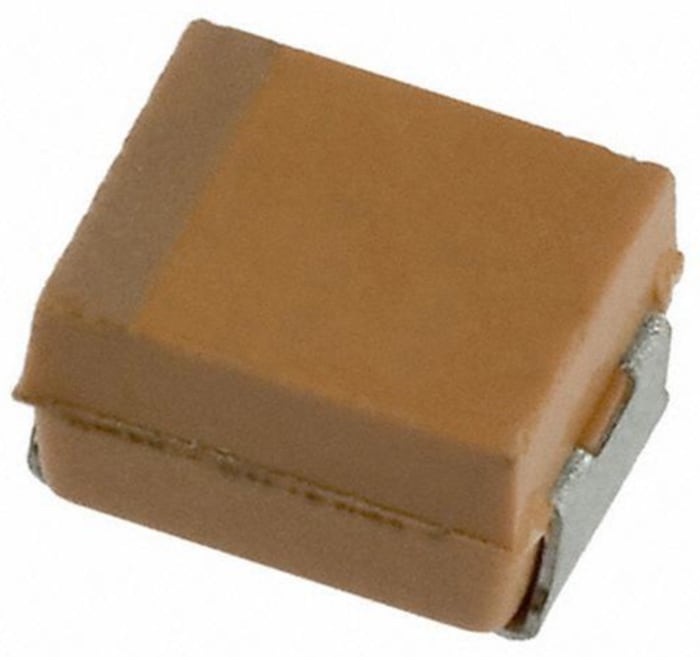

TAJB106K020RNJ The Kyocera AVX TAJB106K020RNJ is a 10μF, 20V dc electrolytic tantalum capacitor. It features a surface mount design and a solid electrolyte.
Mfr Part #:

TAJB106K020RNJ

Available from 6 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
The Kyocera AVX TAJB106K020RNJ is a 10μF, 20V dc electrolytic tantalum capacitor. It features a surface mount design and a solid electrolyte.
✓ Total Stock: 38,226 pcs
$ Price Range: $0.51

TAJB106K020RNJ Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TAJB106K020RNJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Country of Origin
Depth
Dissipation Factor
Failure Rate
Height
Industrial Grade
Lead Spacing
Length
Medical Grade
Military Grade
Tape & Reel
Technology
Terminal Type
Tolerance
Voltage
View Similar Products (0)

TAJB106K020RNJ Description

Short technical summary and product information.

This Kyocera AVX TAJB106K020RNJ is an electrolytic tantalum capacitor with a capacitance of 10μF and a maximum working voltage of 20V dc. It is designed for surface mounting and features a solid electrolyte.



The capacitor operates within a temperature range of -55°C to 125°C and has an Equivalent Series Resistance (ESR) of 2.1Ω. It meets automotive standards such as AEC-Q200 and complies with EIA 535 BAAC and CECC 30801 standards.



Key electrical characteristics include a leakage current of 2μA and a dissipation factor of 6%. The capacitor is supplied in a 1210 package size and is mounted using a surface mount terminal type. It is suitable for general low power DC/DC and Low Drop Out regulator applications.

TAJB106K020RNJ Quick Information

Product Type: Electrolytic Tantalum Capacitor
Series: TAJ
Canonical Name: Kyocera AVX TAJB106K020RNJ 10μF 20V dc Surface Mount Electrolytic Tantalum Capacitor
Subcategory: Tantalum Capacitor

TAJB106K020RNJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TAJB106K020RNJ Estimated Pricing

Qty Low High
1+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

TAJB106K020RNJ Features

  • 10μF capacitance, 20V dc voltage rating.
  • Surface mount electrolytic tantalum capacitor.
  • Low ESR of 2.1Ω.
  • Wide operating temperature range: -55°C to 125°C.
  • AEC-Q200 automotive standard compliant.

TAJB106K020RNJ Applications

  • General low power DC/DC converters.
  • Low Drop Out (LDO) regulators.
  • Power supply filtering applications.
  • Automotive electronic modules.

TAJB106K020RNJ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the TAJB106K020RNJ capacitor?

The capacitance is 10μF.

What is the maximum voltage rating for this capacitor?

The maximum voltage rating is 20V dc.

What is the ESR of the TAJB106K020RNJ capacitor?

The Equivalent Series Resistance (ESR) is 2.1Ω.

What is the operating temperature range for this capacitor?

The operating temperature range is from -55°C to 125°C.

What mounting type does the TAJB106K020RNJ capacitor use?

It uses a surface mount type.

Is this capacitor AEC-Q200 qualified?

Yes, it meets the AEC-Q200 automotive standard.

What is the leakage current for this tantalum capacitor?

The leakage current is 2μA.
