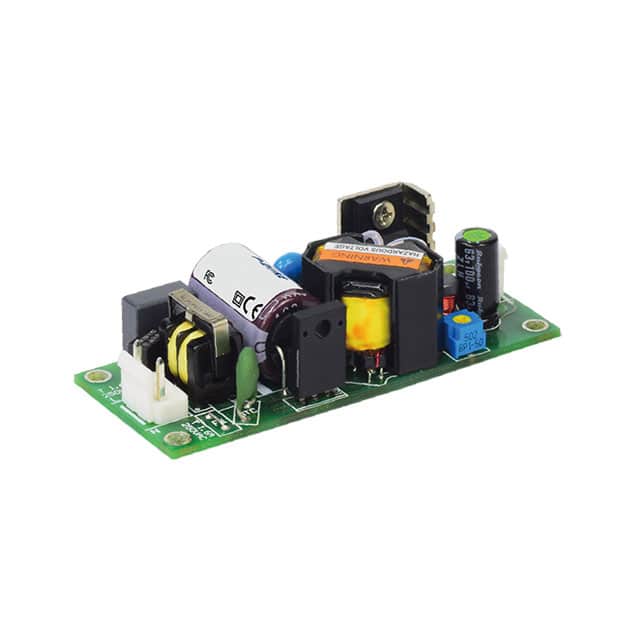

TAD30US09B-P The P-DUKE Technology TAD30US09B-P is an open frame AC/DC converter with a 9V output and 30W power rating. It operates over a wide 85-264VAC input range.
Mfr Part #:

TAD30US09B-P

Mfr Name: P-DUKE Technology, Inc.
P-DUKE Technology, Inc.
The P-DUKE Technology TAD30US09B-P is an open frame AC/DC converter with a 9V output and 30W power rating. It operates over a wide 85-264VAC input range.
Stock on Request

TAD30US09B-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Industrial Grade
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Power
Output Voltage
Power (Watts)
SVHC Present
Standard Number
Type
Voltage
View Similar Products (0)

TAD30US09B-P Description

Short technical summary and product information.

The TAD30US09B-P from P-DUKE Technology, Inc. is an AC/DC power supply module designed for industrial applications. This open frame converter features a 9VDC output voltage and a maximum output power of 30W, with a peak power capability of 40W.



It accepts a wide universal input voltage range of 85 to 264VAC and operates at a frequency of 47 to 63Hz. The unit boasts an efficiency of 87% at full load and features low leakage current under 100μA. The operating temperature range is -40°C to 85°C with derating.



Designed for chassis mounting, this converter has dimensions of 84.8mm x 34.5mm x 19.6mm. It provides 3000VAC isolation and meets safety standards including IEC/UL/EN 62368-1 and IEC/UL/EN 60335-1. Applications include ITE (Commercial) equipment.

TAD30US09B-P Quick Information

Product Type: AC DC Converter
Series: TAD30-P
Canonical Name: TAD30US09B-P AC/DC Power Supply
Subcategory: AC/DC Converters

TAD30US09B-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TAD30US09B-P Features

  • Wide 85-264VAC universal input range.
  • 30W continuous output power.
  • 9VDC output voltage.
  • High efficiency up to 87%.
  • Compact open frame chassis mount design.

TAD30US09B-P Applications

  • Suitable for ITE commercial equipment.
  • Designed for industrial automation systems.
  • Used in datacom and IPC applications.
  • Applicable in measurement and telecom devices.

TAD30US09B-P FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TAD30US09B-P?

The output voltage is 9 VDC.

What is the maximum output power for the TAD30US09B-P?

The maximum output power is 30 Watts.

What is the input voltage range for this AC/DC converter?

The input voltage range is 85 to 264 VAC.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the RoHS status of the TAD30US09B-P?

The RoHS status is RoHS3 Compliant.
