| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

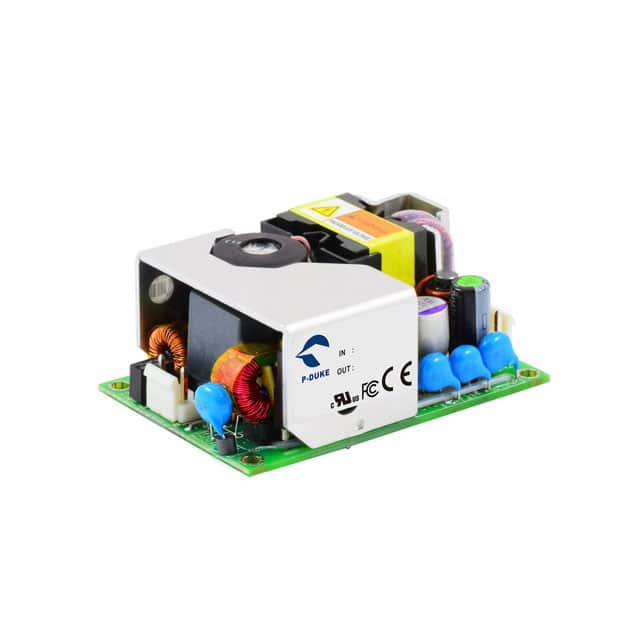

The P-DUKE Technology TAD125US12B is an AC/DC power supply designed for industrial and commercial applications. It provides a stable 12V DC output with a continuous power rating of 100W, capable of delivering up to 125W with forced air cooling.
This power supply operates over a wide universal input voltage range of 85 to 264VAC and features active power factor correction. It boasts high efficiency of 91% at full load and a low no-load input power of 0.3 Watts. The unit is designed with adjustable output voltage and includes protection features such as internal fuse and over-voltage protection.
With its open frame construction and chassis mount type, the TAD125US12B is suitable for integration into various systems. It operates across a broad temperature range of -40°C to 85°C (with derating) and offers 3000 VAC reinforced input-to-output isolation.
Key specifications include a 10.42A maximum output current under forced air, line and load regulation within ±0.5%, and ripple and noise levels as low as 140mVp-p for the 12V output. It complies with IEC/UL/EN 62368-1 safety standards.
The output voltage is 12 VDC.
The maximum output power is 100 Watts under natural convection, and 125 Watts with forced air cooling.
The input voltage range is 85 to 264 VAC.
The efficiency is 91% typical.
The operating temperature range is -40°C to 85°C.
It uses chassis mount.
It complies with IEC/UL/EN 62368-1.
