| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Display Type | |
| Failure Rate | |
| Forward Current | |
| Forward Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| SVHC Present |

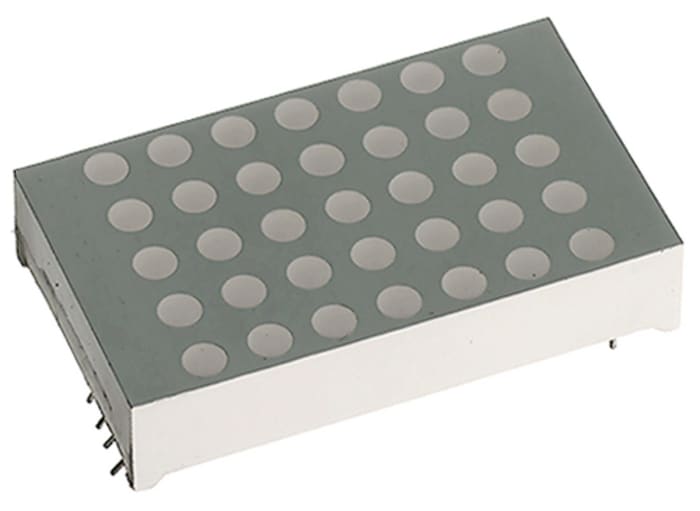

The Kingbright TA12-11SYKWA is a dot matrix LED display module designed for various visual indication applications. It features a yellow color output with a dominant wavelength of 590 nm and a luminous intensity of 220 mcd.
This display has a 7x5 dot matrix configuration, providing clear character representation. Key electrical specifications include a forward voltage of 2V, a forward current of 30mA, and a power dissipation of 75mW. The common connection type is anode.
Mechanically, the display has a character height of 30.5mm and an external depth of 39mm. It is designed for through-hole mounting. The operating temperature range is from -40°C to +85°C, making it suitable for a wide range of environmental conditions.
This series, TA12, is known for its low current operation and mechanically rugged design. The face color is grey with white dots, offering good contrast for visibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Kingbright TA12-11SYKWA LED display is yellow.
The luminous intensity of the TA12-11SYKWA display is 220 mcd.
The operating temperature range for the TA12-11SYKWA is -40°C to +85°C.
The dot matrix format of the TA12-11SYKWA is 5x7 dots wide by 7 dots high.
The forward voltage for the TA12-11SYKWA is 2V.
