| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
106 pcs
|
106 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

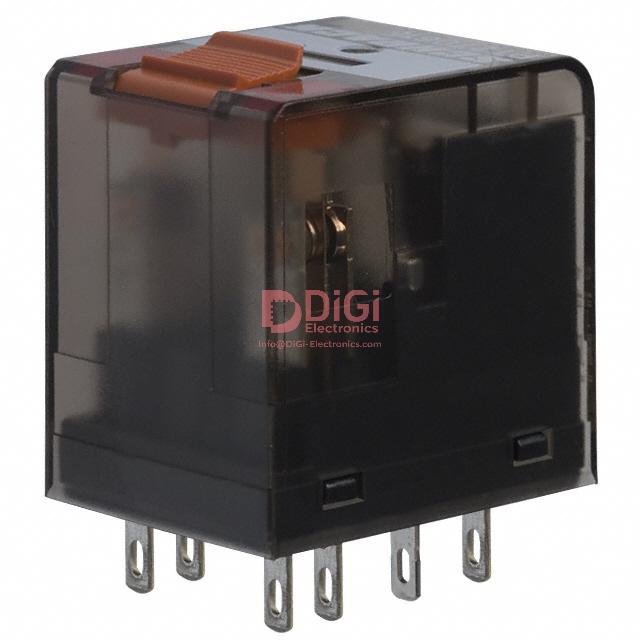

This TE Connectivity T92S7D12-12-02 is a general purpose relay suitable for power applications requiring a robust switching solution. It operates with a 12VDC coil and is capable of handling up to 40A of current.
The relay features a DPST-NO (2 Form A) contact configuration and a switching voltage of up to 600VAC. The contact material is Silver Cadmium Oxide (AgCdO), known for its durability and performance in high-current applications. The operate and release times are both rated at 25 ms, ensuring quick response.
Designed for through-hole mounting with PC pin termination, this relay offers a sealed construction for protection against environmental factors. It operates within a temperature range of -55°C to 85°C, making it suitable for various industrial environments. The relay is RoHS3 compliant and has an MSL of 1.
This component is ideal for applications demanding reliable power switching and high current handling capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12 VDC.
The contact form is DPST-NO (2 Form A).
The contact rating is 40 A.
The maximum switching voltage is 600 VAC.
-55°C to 85°C.
