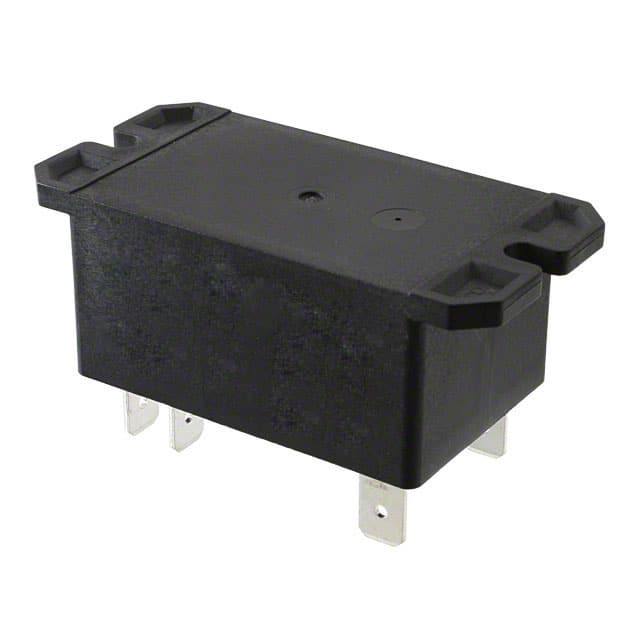

T92P7A22-240 The TE Connectivity T92P7A22-240 is a general purpose power relay featuring a DPST-NO contact form and a 30A current rating. It operates with a 240VAC coil voltage and is designed for chassis mounting.
Mfr Part #:

T92P7A22-240

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity T92P7A22-240 is a general purpose power relay featuring a DPST-NO contact form and a 30A current rating. It operates with a 240VAC coil voltage and is designed for chassis mounting.
✓ Total Stock: 20,000 pcs
$ Price Range: $2.00

T92P7A22-240 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T92P7A22-240 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Insulation
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Lead Style
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Switching Voltage
Tape & Reel
Termination Style
View Similar Products (0)

T92P7A22-240 Description

Short technical summary and product information.

The TE Connectivity T92P7A22-240 is a general purpose power relay designed for robust applications. It features a DPST-NO (2 Form A) contact configuration, capable of handling up to 30A of current and switching up to 277VAC.



The relay operates with a 240VAC coil voltage, requiring 192VAC to operate and releasing at 24VAC. The coil current is 16.7 mA. It offers a quick operate and release time of 15 ms each.



Designed for easy integration, this relay utilizes a chassis mount configuration with 0.250" (6.3mm) quick connect termination style. The operating temperature range is from -55°C to 65°C. Coil insulation is Class F.



This component is suitable for various industrial and commercial applications requiring reliable power switching.

T92P7A22-240 Quick Information

Product Type: Power Relay
Canonical Name: TE Connectivity T92P7A22-240 General Purpose Relay
Subcategory: Power Relay

T92P7A22-240 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T92P7A22-240 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

T92P7A22-240 Features

  • DPST-NO contact form for power switching.
  • Rated for 30A current and 277VAC switching.
  • Operates on 240VAC coil voltage.
  • Chassis mount with quick connect termination.
  • Wide operating temperature range of -55°C to 65°C.

T92P7A22-240 Applications

  • Suitable for general purpose power switching.
  • Used in industrial control systems.
  • Applicable in commercial equipment.
  • Reliable for demanding applications.

T92P7A22-240 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the T92P7A22-240 relay?

The coil voltage is 240VAC.

What is the contact current rating of the T92P7A22-240 relay?

The contact current rating is 30A.

What type of contact form does the T92P7A22-240 relay have?

It has a DPST-NO (2 Form A) contact form.

How is the T92P7A22-240 relay mounted?

The relay is chassis mounted.

What is the operating temperature range for this relay?

The operating temperature range is -55°C to 65°C.
