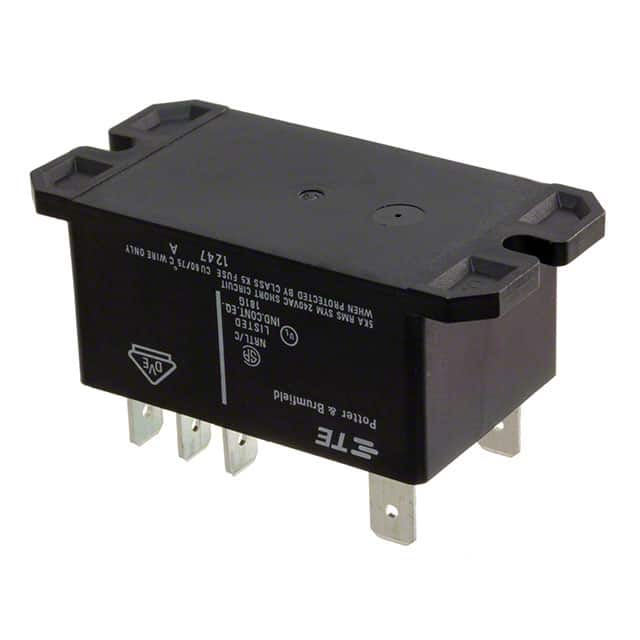

T92P11D22-12 The TE Connectivity T92P11D22-12 is a general purpose DPDT power relay rated for 30A and 12VDC coil operation. It features chassis mounting and quick connect termination.
Mfr Part #:

T92P11D22-12

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity T92P11D22-12 is a general purpose DPDT power relay rated for 30A and 12VDC coil operation. It features chassis mounting and quick connect termination.
✓ Total Stock: 210 pcs
$ Price Range: $2.00

T92P11D22-12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
210 pcs
On Request
210 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T92P11D22-12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Insulation
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Lead Style
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Switching Voltage
Termination Style
View Similar Products (0)

T92P11D22-12 Description

Short technical summary and product information.

The TE Connectivity T92P11D22-12 is a general purpose relay designed for high-current applications. It features a DPDT (2 Form C) contact configuration, capable of switching up to 30A at 277VAC.



The relay operates with a 12VDC coil, requiring a minimum of 9VDC to operate and releasing at 1.2VDC. The coil current is 140 mA, and it utilizes Class F insulation. Both the operate and release times are specified at 15 ms.



Designed for robust installation, this relay offers chassis mounting and quick connect termination (0.250" / 6.3mm). It operates reliably within a temperature range of -55°C to 85°C. The contact material is Silver Cadmium Oxide (AgCdO), known for its durability in high-load switching.



This component is suitable for various industrial and power control applications where reliable high-current switching is essential.

T92P11D22-12 Quick Information

Product Type: Power Relay
Canonical Name: TE Connectivity T92P11D22-12 General Purpose Relay
Subcategory: General Purpose Relay

T92P11D22-12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T92P11D22-12 Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

T92P11D22-12 Features

  • DPDT contact form for versatile switching.
  • 30A contact rating handles high current loads.
  • 12VDC coil voltage for standard control.
  • Chassis mount for secure installation.
  • Quick connect termination for easy wiring.

T92P11D22-12 Applications

  • Ideal for power control circuits.
  • Suitable for industrial automation.
  • Used in HVAC equipment.
  • Applicable in power distribution units.

T92P11D22-12 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the coil voltage of the T92P11D22-12 relay?

The coil voltage is 12 VDC.

What is the contact rating of this relay?

The contact rating is 30 A.

What is the maximum switching voltage for this relay?

The maximum switching voltage is 277 VAC.

What type of contact configuration does this relay have?

It has a DPDT (double pole double throw) contact configuration.

What is the operating temperature range of the relay?

The operating temperature range is from -55°C to 85°C.

Is this relay RoHS compliant?

RoHS compliance status is unverified.
