| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
155 pcs
|
155 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Resistance | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Failure Rate | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

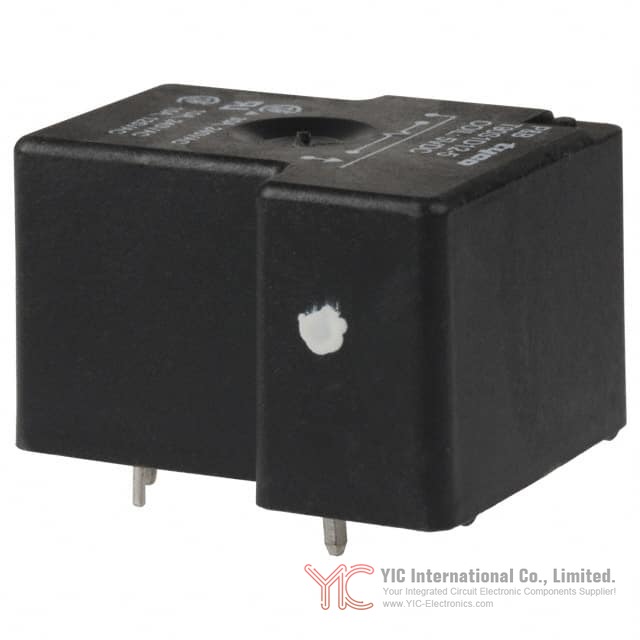

This T90S5D12-24 relay from Schrack is a general purpose, non-latching type with a SPDT (1 Form C) contact configuration. It features a robust 20A contact rating and is designed for a 24VDC coil voltage. The relay operates within a wide temperature range of -55°C to 85°C.
With a through-hole mounting type and PC pin termination, this sealed relay is suitable for various applications requiring reliable switching. Its contact material is Silver Cadmium Oxide (AgCdO), and it has a coil insulation class of F. The operate and release times are both 15 ms, with a must-operate voltage of 18 VDC and a must-release voltage of 2.4 VDC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 20A.
The coil voltage is 24VDC.
The operating temperature range is -55°C to 85°C.
It has a SPDT (1 Form C) contact form.
It is a through-hole mounted relay.
