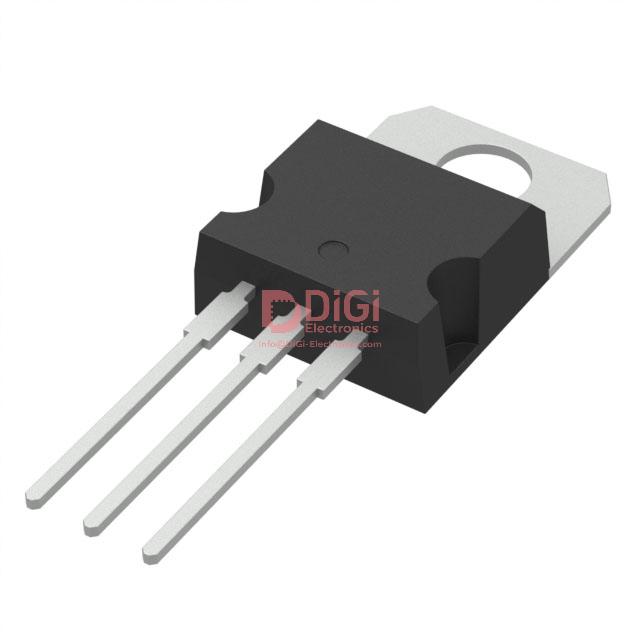

The STMicroelectronics T850H-6I is an Alternistor TRIAC designed for power control applications. It features a high off-state voltage rating of 600V and an on-state current capability of 8A (RMS).
This TRIAC is suitable for various switching applications due to its snubberless design. Key electrical parameters include a gate trigger voltage of 1V (max) and a gate trigger current of 50mA (max). The non-repetitive surge current is rated at 80A and 84A for 50Hz and 60Hz respectively, with a holding current of 75mA (max).
Packaged in a standard TO-220-3 configuration, the T850H-6I is designed for through-hole mounting, making it convenient for integration into circuit designs. It operates within a temperature range of -40°C to 150°C (TJ), ensuring reliability in demanding environments. The series is identified as Snubberless™.
This component is classified under Thyristors and TRIACs, serving as a versatile solution for AC power switching and control circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The off-state voltage is 600V.
The maximum on-state current (It (RMS)) is 8A.
It is an Alternistor - Snubberless TRIAC.
The operating temperature range is -40°C to 150°C (TJ).
It is supplied in a TO-220-3 package.
It is mounted using the through-hole method.
