| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
548 pcs
|
548 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Limiting Element Voltage | |
| Mounting Type | |
| Number of Turns | |
| Operating Voltage | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance |

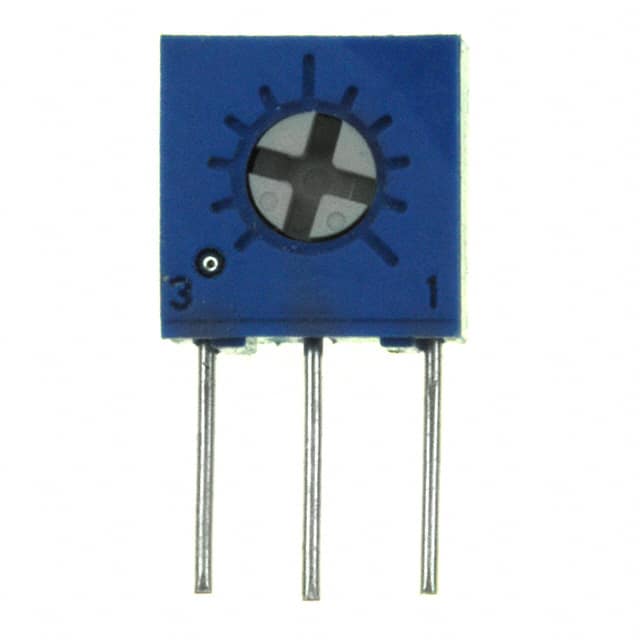

This Vishay T73XX502KT20 is a 1/4" square, single-turn cermet sealed trimmer potentiometer designed for industrial applications. It offers a resistance range from 10 Ω to 2 MΩ, with this specific unit rated at 5 kΩ with a ±10% tolerance.
The potentiometer has a linear power rating of 0.5W at +70°C and a temperature coefficient of ±100 ppm/°C. It features a fully sealed design, making it suitable for harsh environments and immersion cleaning processes. The electrical travel is 240° nominal, and the mechanical travel is 270°.
Mounting is via Through Hole (THT) with PC pin termination. The unit is compact, measuring 0.276" x 0.260" face, and is designed with a rotor for automatic machine adjust interface. Environmental specifications include a temperature range of -55°C to +125°C and a climatic category of 55/100/56, with IP67 sealing.
Key electrical specifications include a limiting element voltage of 300V and insulation resistance of 10³ MΩ minimum at 500 VDC. Contact resistance variation is a maximum of 1% Rn or 3 Ω.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Vishay T73XX502KT20 trimmer potentiometer has a resistance of 5 kΩ.
The T73XX502KT20 trimmer potentiometer has a power rating of 0.5W at +70°C.
The temperature coefficient for the T73XX502KT20 trimmer potentiometer is ±100 ppm/°C.
The T73XX502KT20 trimmer potentiometer uses Through Hole mounting.
The Vishay T73XX502KT20 operates within a temperature range of -55°C to +125°C.
The T73XX502KT20 trimmer potentiometer is fully sealed to IP67.
