| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature | |
| Core Material | |
| Current Rating (Max) | |
| Diameter | |
| Height (Max) | |
| Impedance @ Frequency | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Self Resonant Frequency | |
| Storage Temperature | |
| Tolerance | |
| Type |

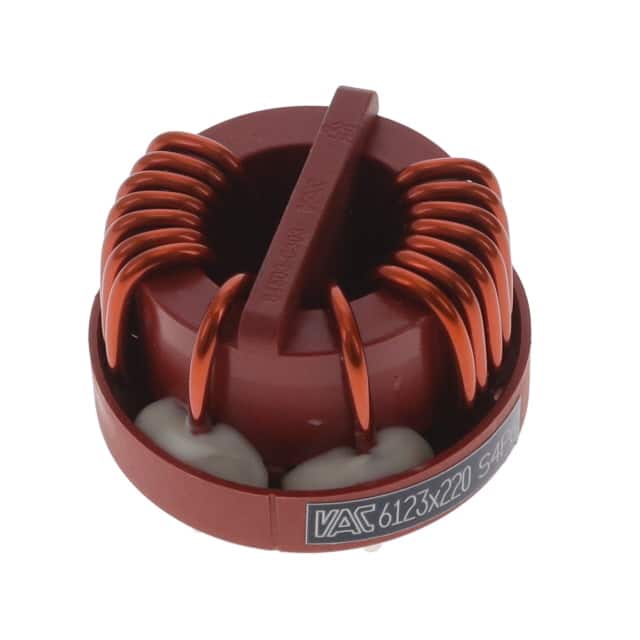

This VACUUMSCHMELZE T60405R6123X220 is a common mode choke designed for filtering applications. It features an inductance of 470µH at 100 kHz and an impedance of 500 Ω at the same frequency.
The choke has a maximum DC current rating of 20.5A and operates across a wide temperature range from -40°C to 130°C. Its construction utilizes a nanocrystalline core material and it is housed in a plastic package.
With a diameter of 35mm and a maximum height of 23.80mm, this component is designed for through-hole mounting. It has 2 lines and is suitable for various power line filtering needs where common mode noise suppression is required.
The rated insulation voltage is 300 V RMS for mains circuits and 600 V RMS for non-mains circuits. The component is supplied in tray packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 470 µH at 100 kHz.
The maximum current rating is 20.5 A.
The operating temperature range is -40°C to +130°C.
The impedance is 500 Ω at 100 kHz.
The package is Horizontal, 4 PC Pin, through hole mounting.
The self-resonant frequency is 11.5 MHz.
The core material is plastic with a nanocrystalline type.
