| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Type | |
| Voltage |

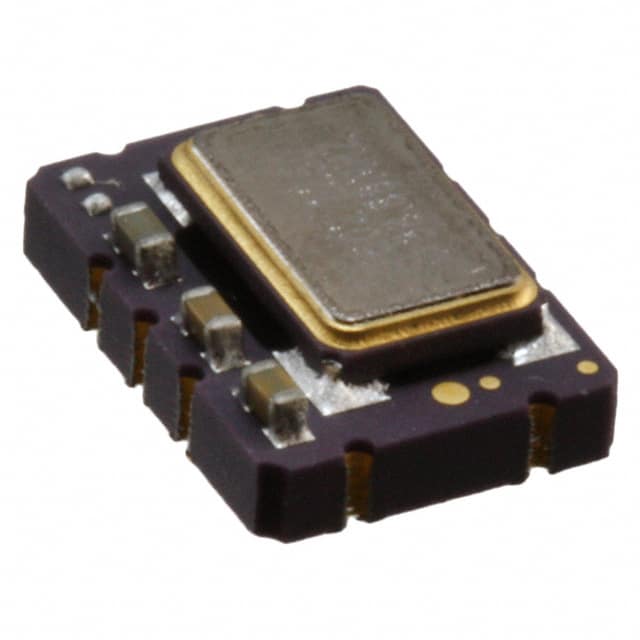

The Connor Winfield T602-024.576M is a temperature compensated crystal oscillator (TCXO) from the T Series, designed for precision timing applications. It operates at a frequency of 24.576 MHz with LVCMOS output logic and a 3.3 V supply voltage.
This oscillator offers a frequency stability of ±280 ppb over the full operating temperature range of -40°C to 85°C, making it suitable for environments requiring high accuracy. The device includes an Enable/Disable function for power management and draws a maximum supply current of 6 mA.
The T602-024.576M is housed in a 10-SMD, No Lead package measuring 7.00 mm x 5.00 mm with a seated height of 2.00 mm, and is designed for surface mount assembly. It is part of the T Series which supports tri-state enable/disable and is available in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.14 | $25.14 |
| 10+ | $22.03 | $22.03 |
| 250+ | $18.00 | $18.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The frequency stability is ±280 ppb.
The supply voltage is 3.3 V.
It comes in a 10-SMD, No Lead package measuring 7.00 mm x 5.00 mm.
RoHS compliance is indicated as RoHS3 Compliant, but this is unverified.
