| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Compatible Tools | |
| For Use With | |
| Tool Type | |
| Wire Gauge |

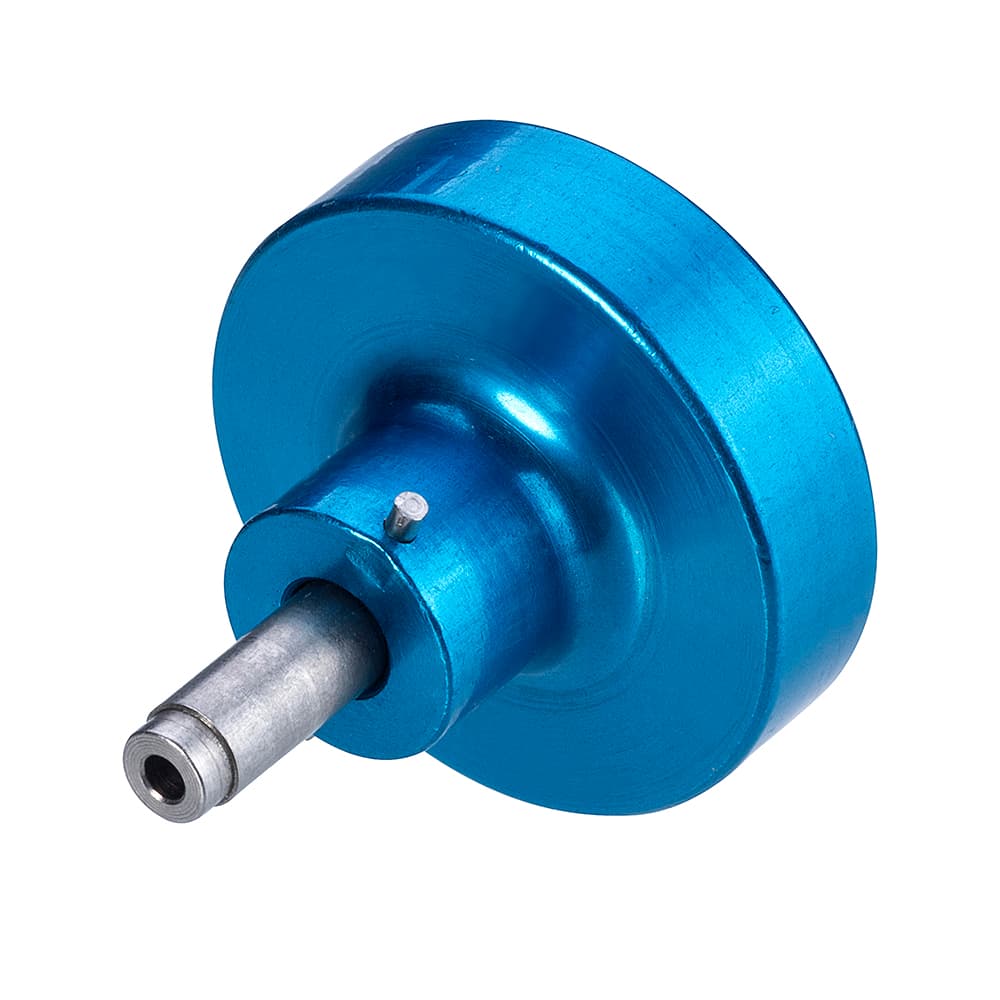

The Harwin Inc. T5747 is a positioner accessory designed for use with the M22520/2-01 hand crimp tool. This component is specifically engineered for crimping Datamate signal contacts to applicable cables, supporting wire gauges from 22 to 28 AWG.
It is suitable for use with Datamate J-Tek and Mix-Tek female receptacle contacts, as well as Datamate L-Tek male plug and female receptacle contacts. The T5747 positioner is an essential tool for ensuring proper crimp height and contact alignment in Datamate connector assemblies.
This positioner is part of the broader Datamate connector range, known for its high-reliability and performance under demanding conditions. The Datamate series offers various configurations and features, including options for latches or jackscrews for enhanced security and strain relief.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The T5747 positioner is compatible with wire gauges from 22 to 28 AWG.
The T5747 positioner is designed for use with the M22520/2-01 hand crimp tool.
The T5747 positioner is suitable for crimping Datamate signal contacts, including Datamate J-Tek and Mix-Tek female receptacle contacts, and Datamate L-Tek male plug and female receptacle contacts.
The T5747 positioner is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the T5747 positioner is 1 Unlimited.
