| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

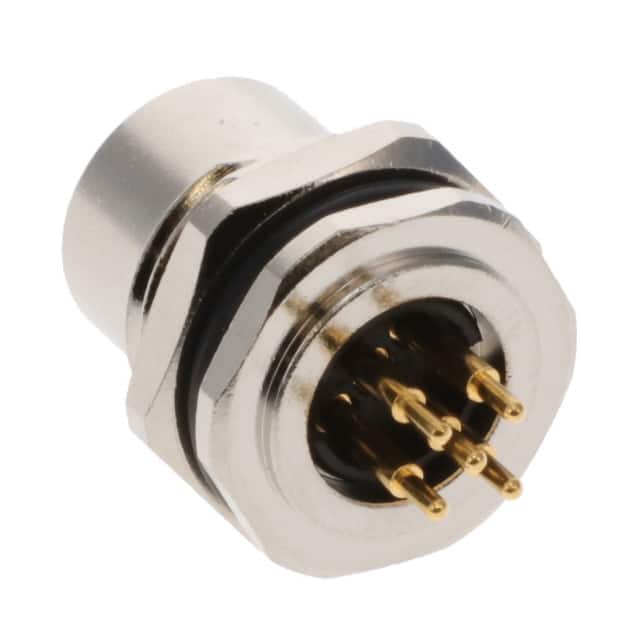

The TE Connectivity T4141012051-000 is a metal-shell circular connector plug designed for reliable signal and low-power connections in industrial and commercial applications. It features a threaded M12-5 coupling with an A-coded keying orientation, ensuring secure mating and correct alignment.
This connector offers 5 female socket positions with gold-plated contacts for corrosion resistance and reliable conductivity. It is rated for 4 A per contact and 60 V, with an operating temperature range of -40°C to 85°C. The shell is made of nickel-plated copper alloy, providing durability and EMI shielding (unshielded variant).
The connector is designed for panel mount installation with a bulkhead front side nut and through-hole solder termination. It carries an IP67 ingress protection rating, making it suitable for environments where dust and temporary water immersion may occur. The insulator material meets UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.14 | $8.14 |
| 10+ | $7.30 | $7.30 |
| 25+ | $7.02 | $7.02 |
| 50+ | $6.82 | $6.82 |
| 100+ | $6.44 | $6.44 |
| 250+ | $6.06 | $6.06 |
| 500+ | $5.82 | $5.82 |
| 1,000+ | $5.52 | $5.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector is rated for 4 A per contact.
The voltage rating is 60 V.
It is designed for panel mount with through-hole solder termination, using a bulkhead front side nut.
It has 5 positions (female sockets).
It is rated IP67, meaning it is dust-tight and protected against temporary water immersion.
The operating temperature range is -40°C to 85°C.
The contacts have a gold finish.
