| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

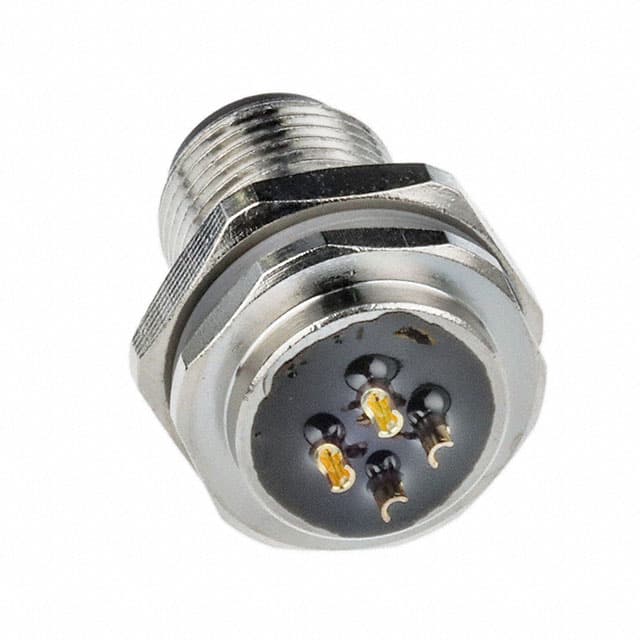

The TE Connectivity T4130012041-000 is a M12-4 circular connector receptacle designed for reliable signal and power connections in industrial environments. It features 4 male pins with gold-plated contacts for corrosion resistance and reliable conductivity.
This receptacle is panel mounted with a bulkhead front side nut and uses a threaded fastening system for secure mating. The solder cup termination allows for easy field wiring. The metal shell is made of copper alloy with a nickel finish, providing durability and EMI shielding.
Rated for 4A current and 250V voltage, the connector operates over a wide temperature range of -40°C to 85°C. It is IP67 rated for dust tight and waterproof protection, making it suitable for harsh environments. The material flammability rating is UL94 V-0.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.71 | $7.71 |
| 10+ | $6.74 | $6.74 |
| 25+ | $6.32 | $6.32 |
| 50+ | $6.02 | $6.02 |
| 100+ | $5.73 | $5.73 |
| 250+ | $5.37 | $5.37 |
| 500+ | $5.11 | $5.11 |
| 1,000+ | $4.87 | $4.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with 4 male pins.
Panel mount with bulkhead front side nut, solder cup termination.
Rated for 4A current and 250V voltage.
IP67 - dust tight and waterproof.
-40°C to 85°C.
Copper alloy shell with nickel finish.
UL94 V-0.
