| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

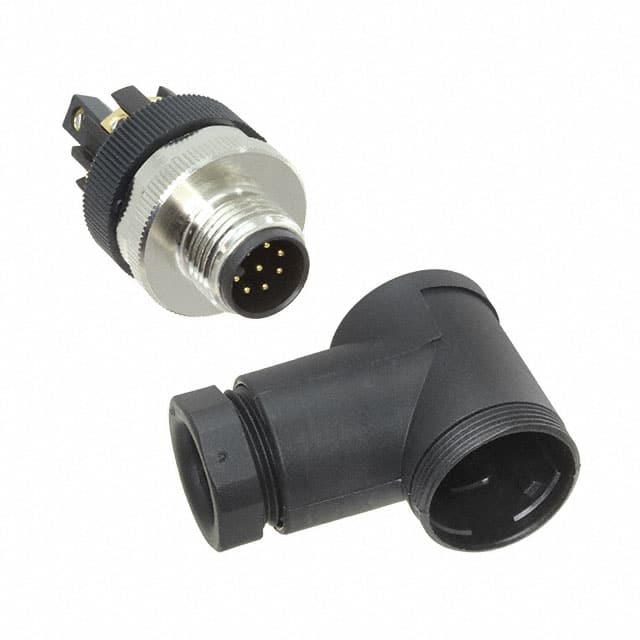

This TE Connectivity T4113002081-000 is an M12-8 circular connector receptacle with male pins. It features 8 positions, gold-plated contacts, and screw termination for reliable field wiring. The connector is unshielded with a brass shell and nickel finish, available in black and silver.
Designed for free-hanging (in-line) right-angle mounting, it uses a threaded fastening mechanism. The cable opening accommodates 6.00mm to 8.00mm diameter cables and includes a backshell for strain relief.
Rated for 30V and 2A, with an operating temperature range of -40°C to 85°C. It offers IP67 ingress protection, making it dust-tight and waterproof. Suitable for industrial automation, sensor connections, and other harsh environment applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.49 | $12.49 |
| 10+ | $10.62 | $10.62 |
| 25+ | $9.95 | $9.95 |
| 50+ | $9.48 | $9.48 |
| 100+ | $9.02 | $9.02 |
| 250+ | $8.46 | $8.46 |
| 500+ | $8.06 | $8.06 |
| 1,000+ | $7.83 | $7.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2A.
30V.
Free hanging (in-line) with right angle orientation.
IP67 - dust tight and waterproof.
-40°C to 85°C.
Screw termination.
