| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

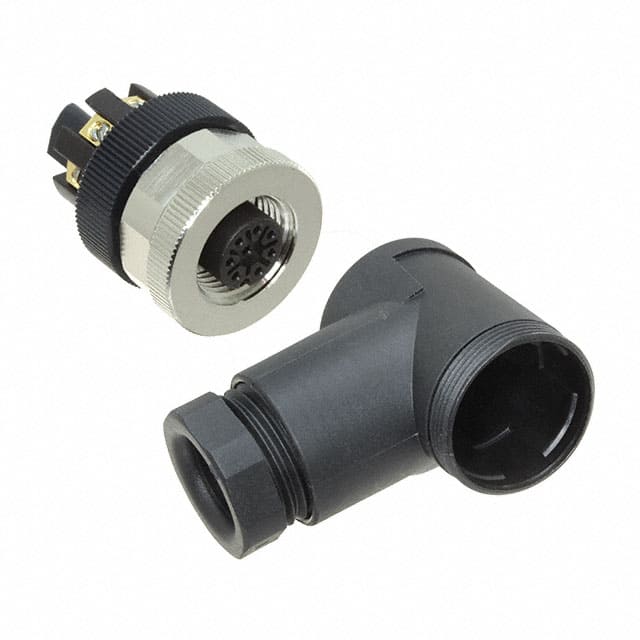

The TE Connectivity T4112002081-000 is an M12-8 circular connector plug designed for reliable signal and power connections in industrial environments. It features 8 female socket contacts with gold finish for corrosion resistance and reliable conductivity. The connector uses a threaded coupling mechanism for secure mating and includes a backshell and coupling nut for cable strain relief.
Electrical ratings are 2A per contact at 30V, suitable for low-power sensor and actuator applications. The connector is unshielded and supports cable diameters from 6.00mm to 8.00mm via the screw termination style. The metal shell is brass with nickel plating, providing durability and environmental sealing.
With an IP67 ingress protection rating, this connector is dust-tight and protected against temporary water immersion. The operating temperature range of -40°C to 85°C allows use in demanding industrial and outdoor settings. The right-angle, free-hanging design simplifies installation in tight spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.64 | $10.64 |
| 10+ | $9.65 | $9.65 |
| 25+ | $9.21 | $9.21 |
| 50+ | $9.03 | $9.03 |
| 250+ | $8.73 | $8.73 |
| 500+ | $8.33 | $8.33 |
| 1,000+ | $7.93 | $7.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is an M12-8 circular connector plug with 8 female socket positions.
The connector is rated for 2A per contact at 30V.
The connector has an IP67 rating, meaning it is dust-tight and protected against temporary water immersion.
The connector is free-hanging (in-line) with a right-angle orientation.
The operating temperature range is -40°C to 85°C.
