| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
158 pcs
|
158 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

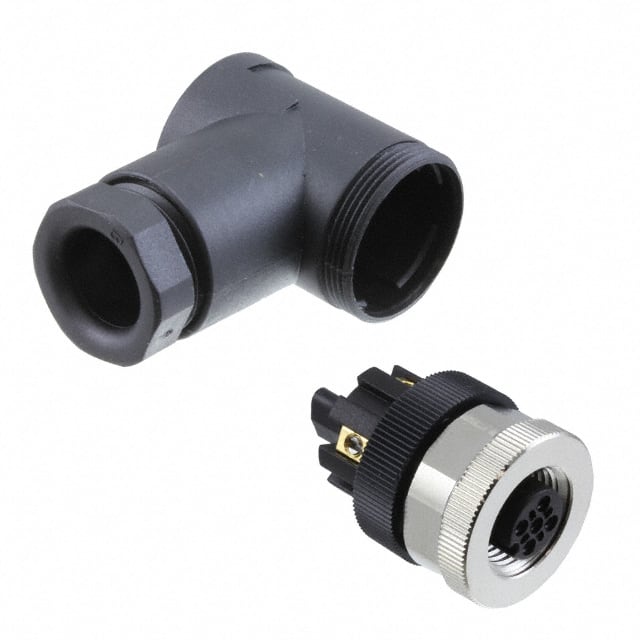

The TE Connectivity T4112002051-000 is an M12-5 circular connector plug designed for reliable signal and power connections in industrial environments. It features 5 female socket contacts with gold plating for corrosion resistance and low contact resistance. The screw termination ensures secure wire attachment without special tooling.
This connector is rated for 4A current and 60V voltage, with an operating temperature range of -40°C to 85°C. It offers IP67 ingress protection against dust and temporary water immersion. The brass shell with nickel finish provides durability, while the threaded fastening mechanism ensures a vibration-resistant connection.
The right angle free hanging (in-line) design allows for space-saving installations where cable routing requires a 90-degree exit. It includes a backshell and coupling nut for strain relief and secure mating. The cable opening accommodates 6.00mm to 8.00mm diameter cables. The connector is unshielded and comes in a black and silver color scheme.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.34 | $9.34 |
| 10+ | $8.79 | $8.79 |
| 25+ | $8.24 | $8.24 |
| 50+ | $7.85 | $7.85 |
| 100+ | $7.47 | $7.47 |
| 250+ | $7.00 | $7.00 |
| 500+ | $6.48 | $6.48 |
| 1,000+ | $6.07 | $6.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
4A.
60V.
Free hanging (in-line), right angle.
IP67.
-40°C to 85°C.
Screw.
