| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

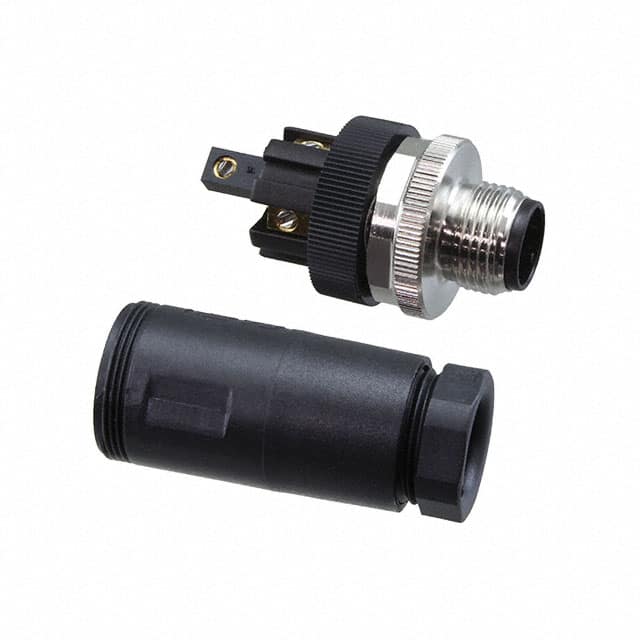

The TE Connectivity T4111002051-000 is an M12-5 circular connector receptacle designed for industrial applications requiring reliable signal and power connections. It features 5 male pins with gold contact finish for corrosion resistance and reliable conductivity. The screw termination provides secure wire attachment, while the threaded coupling ensures vibration-resistant mating.
This connector is rated for 4A current and 60V voltage, with an IP67 ingress protection rating making it dust tight and waterproof. The operating temperature range is -40°C to 85°C, suitable for harsh environments. The shell is made of brass with nickel finish, and the connector is unshielded with a backshell feature. Cable opening accommodates 6.00mm to 8.00mm diameter cables.
Mounting is free hanging (in-line), and the connector is color black and silver. It is commonly used in sensor and actuator connections, factory automation, and fieldbus networks. Compliance with RoHS, REACH, and MSL level 1 is indicated but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.39 | $9.39 |
| 10+ | $8.39 | $8.39 |
| 25+ | $7.86 | $7.86 |
| 50+ | $7.49 | $7.49 |
| 100+ | $7.10 | $7.10 |
| 250+ | $6.68 | $6.68 |
| 500+ | $6.36 | $6.36 |
| 1,000+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
4 A.
60 V.
Free hanging (in-line).
IP67 - dust tight and waterproof.
-40°C to 85°C.
Screw termination.
