| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

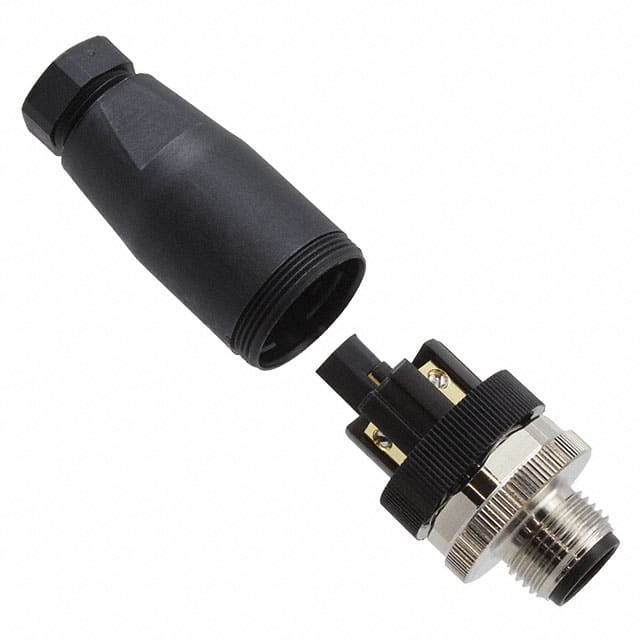

The TE Connectivity T4111001051-000 is a circular connector receptacle designed for industrial applications requiring reliable connections. It features a M12-5 shell size with 5 male pin positions, screw termination, and threaded fastening for secure mating. The connector is rated IP67, providing dust-tight and waterproof protection, making it suitable for harsh environments. The shell is made of nickel-plated brass, and the contacts are gold-plated for corrosion resistance and reliable signal transmission. Electrical ratings include 4A current and 60V voltage, with an operating temperature range of -40°C to 85°C. The connector accommodates cable diameters from 0.157" to 0.236" (4.00mm to 6.00mm) and includes a backshell for strain relief. The color is black and silver. This connector is unshielded and is suitable for free hanging (in-line) mounting. It is compliant with RoHS3 and REACH (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $8.73 | $8.73 |
| 10+ | $7.80 | $7.80 |
| 25+ | $7.43 | $7.43 |
| 50+ | $7.07 | $7.07 |
| 100+ | $6.14 | $6.14 |
| 250+ | $5.59 | $5.59 |
| 1,000+ | $5.58 | $5.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with male pins and has 5 positions.
Free hanging (in-line) mounting with screw termination.
4A current rating and 60V voltage rating.
IP67 - dust tight and waterproof.
Shell size M12-5, made of brass with nickel finish.
-40°C to 85°C.
Yes, it includes a backshell feature.
