| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
823 pcs
|
823 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

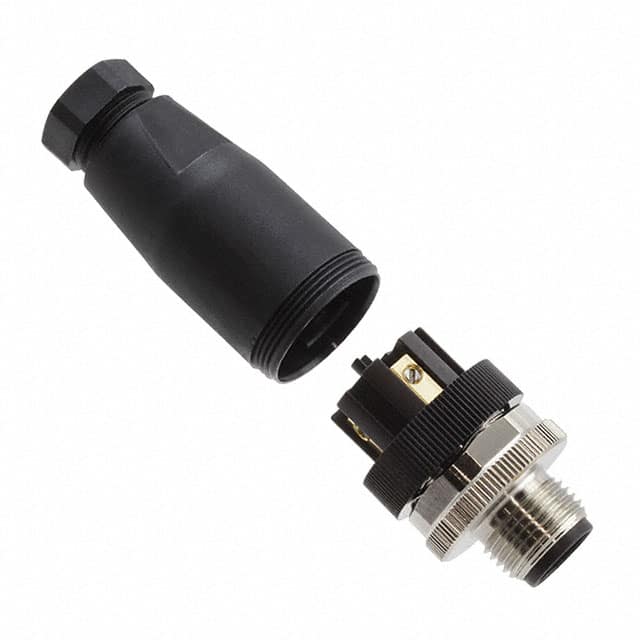

The TE Connectivity T4111001041-000 is a M12-4 circular connector receptacle designed for reliable signal and power connections in industrial environments. It features 4 male pins with gold-plated contacts for corrosion resistance and reliable conductivity. The connector uses a threaded coupling mechanism for secure mating and a screw termination style for easy field wiring.
This unshielded connector is rated for 250V and 4A, with an operating temperature range of -40°C to 85°C. The brass shell with nickel finish provides durability, while the IP67 rating ensures protection against dust and temporary water immersion. The housing is black and silver, and the connector accommodates cable diameters from 4.00mm to 6.00mm.
The free-hanging (in-line) mounting style makes it suitable for cable-to-cable or cable-to-panel applications. A backshell feature is included for strain relief and cable protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.24 | $7.24 |
| 10+ | $6.54 | $6.54 |
| 25+ | $5.73 | $5.73 |
| 50+ | $5.59 | $5.59 |
| 100+ | $5.45 | $5.45 |
| 250+ | $5.29 | $5.29 |
| 500+ | $4.72 | $4.72 |
| 1,000+ | $4.58 | $4.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is a M12-4 circular connector receptacle with 4 male pins.
Rated for 250V and 4A.
IP67 — dust tight and waterproof.
Free hanging (in-line) mounting with screw termination.
-40°C to 85°C.
Brass shell with nickel finish.
Cable opening diameter of 4.00mm to 6.00mm.
