| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

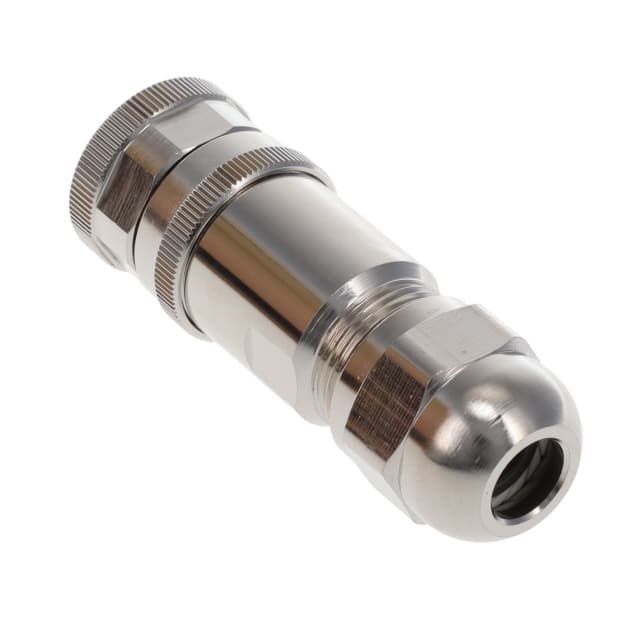

The TE Connectivity T4110012081-000 is an M12-8 circular connector plug featuring 8 female socket contacts. It is designed for free hanging (in-line) mounting with a threaded fastening mechanism for secure connections. The metal shell is made of brass with a nickel finish, providing durability and shielding. Contacts are gold plated for reliable signal integrity. The connector is rated for 2A current and 30V voltage, with an operating temperature range of -40°C to 85°C. It offers IP67 ingress protection against dust and water immersion. The screw termination style simplifies field wiring. Additional features include a backshell and coupling nut. The cable opening accommodates 6.00mm to 8.00mm diameter cables. This connector is suitable for industrial automation, sensor connections, and other harsh environment applications requiring a compact, shielded circular interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.94 | $14.94 |
| 10+ | $13.60 | $13.60 |
| 25+ | $12.27 | $12.27 |
| 50+ | $11.76 | $11.76 |
| 100+ | $11.08 | $11.08 |
| 250+ | $10.90 | $10.90 |
| 500+ | $10.61 | $10.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2A.
30V.
Free hanging (in-line).
IP67 - dust tight and waterproof.
Screw termination.
-40°C to 85°C.
