| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

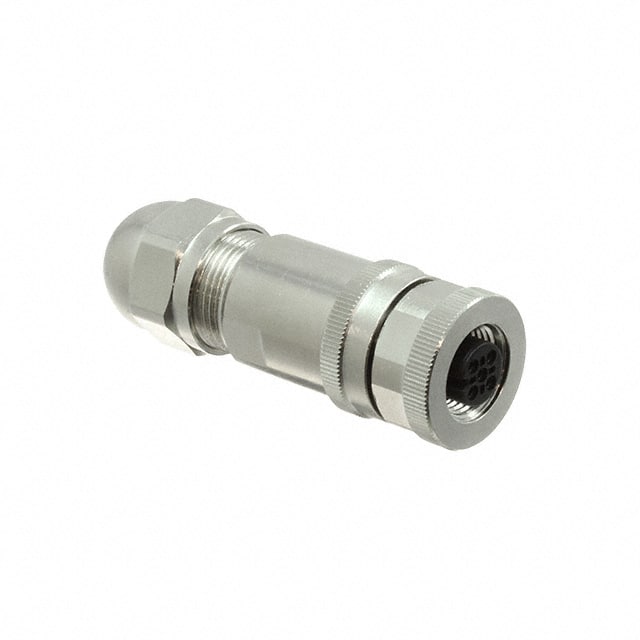

The TE Connectivity T4110012051-000 is a M12-5 circular connector plug designed for reliable signal and power connections in industrial environments. It features 5 female socket contacts with gold plating for corrosion resistance and low contact resistance. The connector uses a threaded coupling mechanism for secure mating and includes a backshell and coupling nut for strain relief and cable management.
This plug is rated for 4A current and 60V voltage, with an operating temperature range of -40°C to 85°C. The metal shell is made of brass with a nickel finish, providing durability and shielding against electromagnetic interference. The free hanging (in-line) mounting style and screw termination simplify field installation.
With an IP67 ingress protection rating, this connector is dust tight and protected against temporary immersion in water, making it suitable for harsh industrial, automation, and sensor applications. The cable opening accommodates 6.00mm to 8.00mm diameter cables.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.26 | $13.26 |
| 10+ | $12.10 | $12.10 |
| 25+ | $11.17 | $11.17 |
| 50+ | $10.46 | $10.46 |
| 100+ | $9.72 | $9.72 |
| 250+ | $9.11 | $9.11 |
| 500+ | $8.79 | $8.79 |
| 1,000+ | $8.69 | $8.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, Female Sockets.
5 positions.
4A.
60V.
Free Hanging (In-Line).
IP67 - Dust Tight, Waterproof.
-40°C to 85°C.
