| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Voltage Rating |

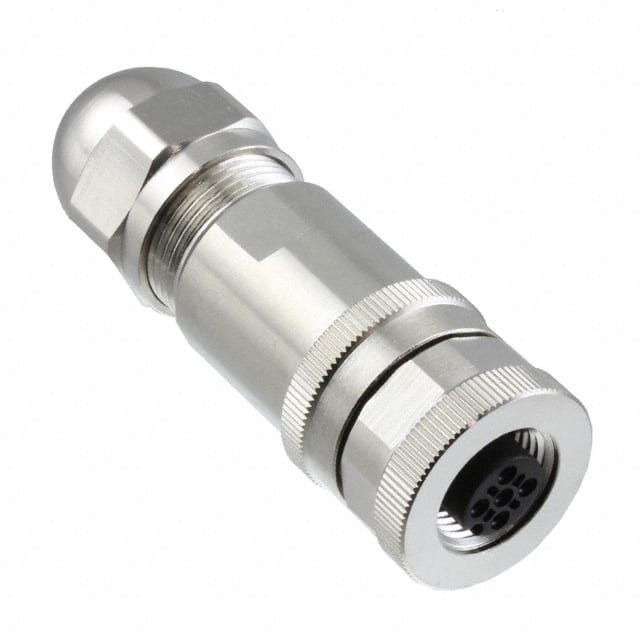

The T4110012041-000 is a 4-position M12-4 circular plug connector from TE Connectivity. It features female sockets with gold-plated screw terminals for secure wiring. The connector has a threaded coupling nut for fast mating and is designed for free-hanging (in-line) mounting. The metal shell is made of brass with a nickel finish, providing durability and corrosion resistance. The cable opening accepts cables from 6.00 mm to 8.00 mm in diameter.
This shielded connector offers protection against electromagnetic interference. It is rated for a current of 4 A and voltage of 250 V. With an IP67 ingress protection rating, it is dust-tight and waterproof. The operating temperature range is -40°C to 85°C, making it suitable for demanding industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.69 | $10.69 |
| 10+ | $10.27 | $10.27 |
| 25+ | $9.38 | $9.38 |
| 250+ | $8.80 | $8.80 |
| 500+ | $8.21 | $8.21 |
| 1,000+ | $7.76 | $7.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
4 A.
250 V.
Free hanging (in-line).
IP67, dust-tight and waterproof.
-40°C to 85°C.
Screw termination.
