| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

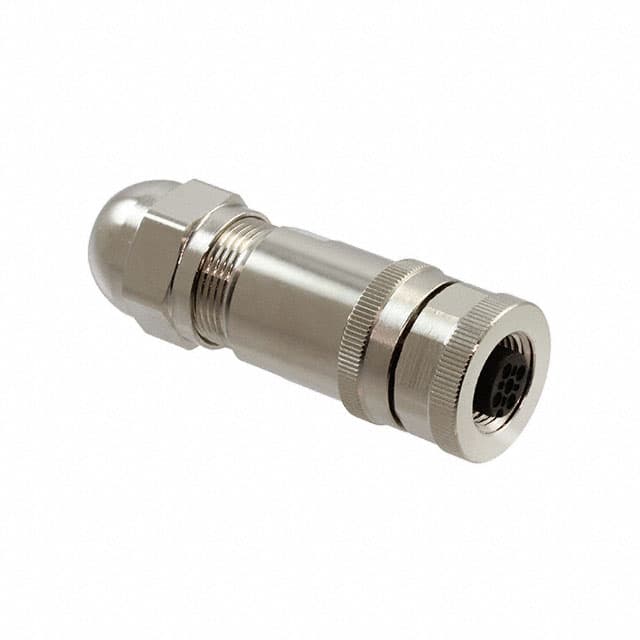

The TE Connectivity T4110011051-000 is an M12-5 circular connector plug featuring 5 female socket contacts. The connector has a shielded metal shell made of brass with a nickel finish, providing robust protection against electromagnetic interference. The threaded coupling ensures secure mating, and the screw termination allows reliable wire connections.
This connector is rated for 4A current and 60V voltage, with an IP67 ingress protection rating for dust-tight and waterproof performance in harsh environments. It operates over a temperature range of -40°C to 85°C. The cable opening accommodates wires from 0.157" to 0.236" (4.00mm to 6.00mm).
Additional features include a backshell and coupling nut for strain relief and ease of installation. The mounting type is free hanging (in-line), making it suitable for field wiring applications in industrial automation, sensor networks, and factory floor equipment. The gold plated contacts provide low resistance and corrosion resistance for long-term reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.08 | $13.08 |
| 10+ | $11.95 | $11.95 |
| 25+ | $10.84 | $10.84 |
| 50+ | $10.48 | $10.48 |
| 100+ | $9.74 | $9.74 |
| 250+ | $9.32 | $9.32 |
| 500+ | $9.12 | $9.12 |
| 1,000+ | $8.69 | $8.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions (female sockets).
4A.
60V.
Free hanging (in-line).
IP67 (dust tight and waterproof).
-40°C to 85°C.
Screw termination.
