| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Termination Style | |
| Voltage Rating |

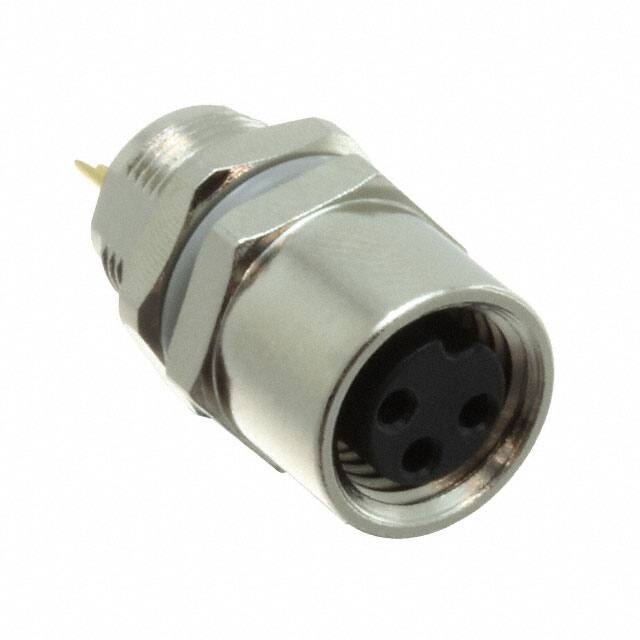

The TE Connectivity T4033014031-000 is a metal circular connector receptacle designed for reliable signal and power connections in demanding environments. It features 3 female socket contacts arranged in orientation A within an M8-3 shell size. The connector is panel mounted using a bulkhead rear side nut and terminated via solder cups, making it suitable for field-installable or serviceable applications.
This connector is rated for a current of 3 A and a voltage of 60 V, with an operating temperature range of -40°C to 85°C. The copper alloy shell has a nickel finish, and the contacts are gold plated for corrosion resistance and reliable conductivity. It offers IP67 ingress protection, ensuring it is dust tight and waterproof for use in harsh conditions.
The threaded fastening type provides a secure and vibration-resistant connection. The silver-colored metal construction offers durability and EMI shielding. This connector is suitable for industrial automation, sensor systems, and other applications requiring a compact, robust circular interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.78 | $8.78 |
| 10+ | $7.62 | $7.62 |
| 25+ | $6.91 | $6.91 |
| 50+ | $6.73 | $6.73 |
| 100+ | $6.36 | $6.36 |
| 250+ | $5.89 | $5.89 |
| 500+ | $5.85 | $5.85 |
| 1,000+ | $5.32 | $5.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female sockets.
It has 3 positions.
It is panel mounted using a bulkhead rear side nut.
It is rated for 3 A and 60 V.
It has an IP67 rating, meaning it is dust tight and waterproof.
The operating temperature range is -40°C to 85°C.
It uses solder cup termination.
