| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Termination Style | |
| Voltage Rating |

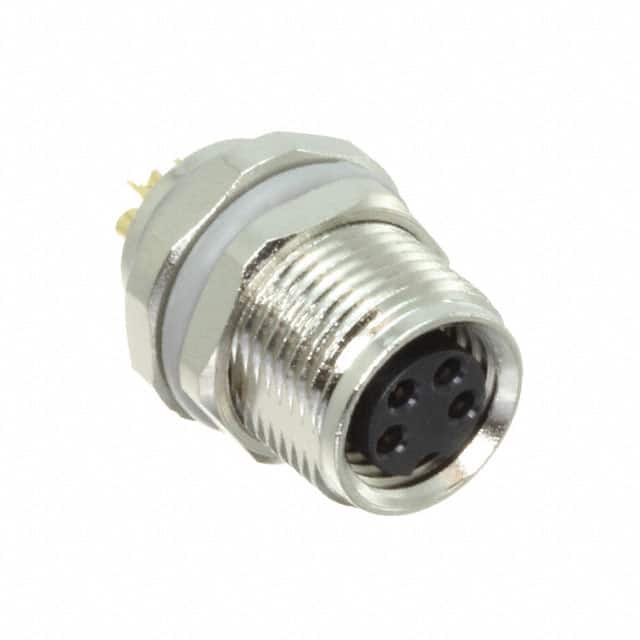

The TE Connectivity T4031017041-000 is a 4-position circular connector receptacle designed for reliable signal and power connections in demanding environments. It features a M8-4 shell size with female socket contacts and solder cup termination for easy field wiring. The connector is rated for 3A current and 30V voltage, with gold-plated contacts ensuring low resistance and corrosion resistance.
The connector is panel mountable with a bulkhead front side nut mounting feature, providing secure installation. The threaded fastening type ensures vibration-resistant mating. With an IP67 rating, it is dust tight and waterproof, making it suitable for industrial automation, sensor networks, and outdoor equipment. The operating temperature range is -40°C to 85°C.
The metal shell is made of copper alloy with a nickel finish, offering durability and EMC shielding. The silver color and robust construction make it appropriate for harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.55 | $9.55 |
| 10+ | $8.35 | $8.35 |
| 25+ | $8.06 | $8.06 |
| 100+ | $7.86 | $7.86 |
| 250+ | $7.01 | $7.01 |
| 500+ | $6.69 | $6.69 |
| 1,000+ | $6.27 | $6.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 4 positions.
The current rating is 3 A.
The voltage rating is 30 V.
It is panel mount with a bulkhead front side nut feature.
The termination style is solder cup.
It is rated IP67, dust tight and waterproof.
The shell size is M8-4 with orientation A.
