T4011019041-000
TE Connectivity
M8-4 circular connector plug with 4 male pins, screw termination, and gold contacts. Rated for 3A at 30V with IP67 protection.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Termination Style | |
| Voltage Rating |

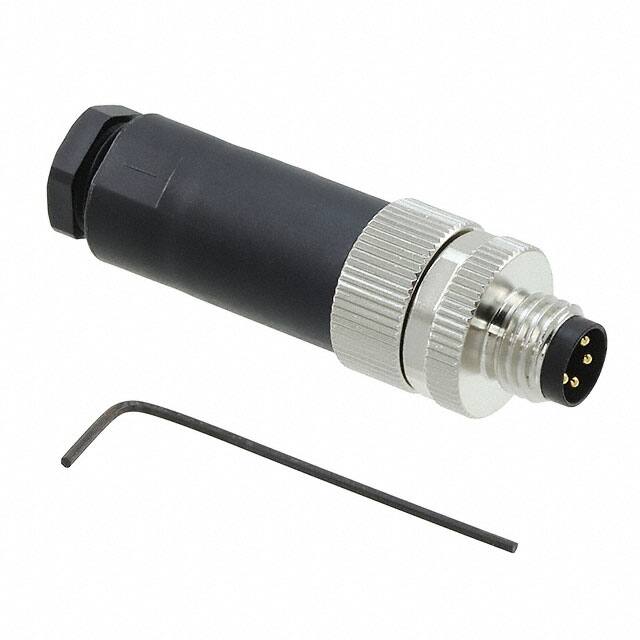

The TE Connectivity T4011008041-000 is a 4-position male circular connector with screw termination, designed for free hanging (in-line) mounting. It has a brass metal shell with M8-4 thread size and gold-plated contacts for reliable electrical performance.
Rated for 3 A current and 30 V voltage, it operates over a temperature range of -40°C to 85°C. The threaded fastening type ensures secure mating, while the backshell provides strain relief and cable protection. IP67 rating guarantees protection against dust and temporary water immersion.
This connector is suitable for industrial and harsh environment applications where a compact and rugged connection is required. The screw termination allows for easy field wiring without special tools.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.96 | $10.96 |
| 10+ | $10.95 | $10.95 |
| 25+ | $10.27 | $10.27 |
| 50+ | $10.06 | $10.06 |
| 100+ | $9.85 | $9.85 |
| 250+ | $9.81 | $9.81 |
| 1,000+ | $9.45 | $9.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
3 amperes.
30 volts.
Free hanging (in-line) mounting.
IP67 (dust tight, waterproof).
Screw termination.
