| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

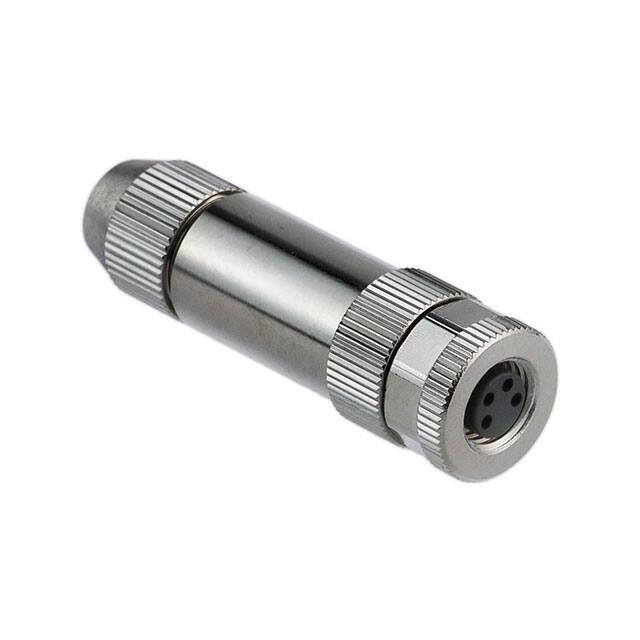

The TE Connectivity T4010019041-000 is a 4 position circular connector receptacle designed for reliable signal and power connections in demanding environments. This female socket connector features a metal shell with a nickel finish and gold plated contacts for corrosion resistance and reliable conductivity.
The connector is rated for 3A current and 30V voltage, making it suitable for low-power sensor and actuator applications. It offers IP67 dust tight and waterproof protection, ensuring operation in harsh conditions. The operating temperature range spans from -40°C to 85°C.
Mechanical features include a threaded fastening type for secure mating, a free hanging (in-line) mounting style, and screw termination for easy field wiring. The connector includes a backshell and coupling nut for cable strain relief and secure assembly. The shell size is M8-4, a compact form factor common in industrial automation and sensor systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.29 | $20.29 |
| 10+ | $17.51 | $17.51 |
| 25+ | $16.32 | $16.32 |
| 50+ | $15.63 | $15.63 |
| 100+ | $14.89 | $14.89 |
| 200+ | $14.72 | $14.72 |
| 600+ | $14.42 | $14.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female sockets.
It has 4 positions.
The current rating is 3 A.
The voltage rating is 30 V.
It is free hanging (in-line) mounting.
It is IP67 rated, meaning it is dust tight and waterproof.
The operating temperature range is -40°C to 85°C.
