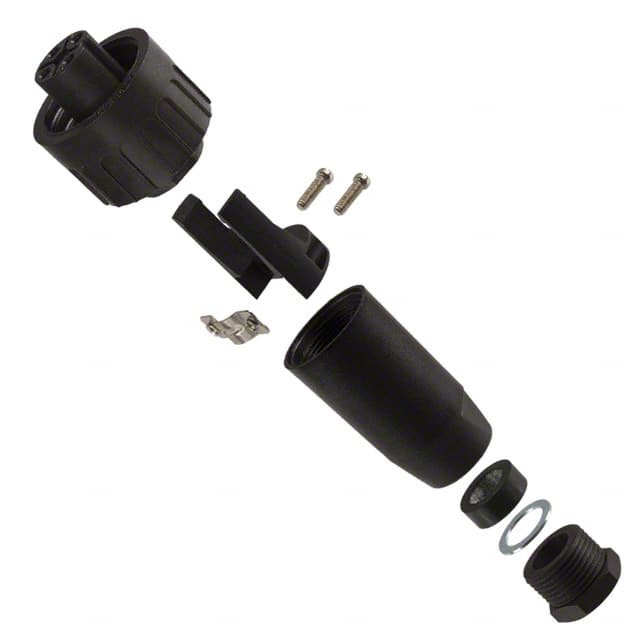

T3109 101 Amphenol Tuchel Industrial T3109 101 is a 4 position circular connector plug with female sockets, screw termination, and silver contacts. It features a threaded coupling, IP67 ingress protection, and a nylon shell with strain relief.
Mfr Part #:

T3109 101

Available from 1 distributors
Mfr Name: Amphenol Tuchel Industrial
Amphenol Tuchel Industrial
Amphenol Tuchel Industrial T3109 101 is a 4 position circular connector plug with female sockets, screw termination, and silver contacts. It features a threaded coupling, IP67 ingress protection, and a nylon shell with strain relief.
✓ Total Stock: 2 pcs
$ Price Range: $5.69

T3109 101 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T3109 101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Current Rating (Amps)
Fastening Type
Features
Ingress Protection
Lead Style
Mounting Type
Number of Positions
Operating Temperature
Primary Material
Shell Material
Termination
Voltage Rating
View Similar Products (0)

T3109 101 Description

Short technical summary and product information.

The Amphenol Tuchel Industrial T3109 101 is a 4 position circular connector plug designed for reliable power and signal connections in demanding environments. This connector features female sockets with silver-plated contacts for excellent conductivity and corrosion resistance. The screw termination method provides secure wire attachment without specialized tooling.



The connector is rated for 16A current and 400V, making it suitable for moderate power applications. Its IP67 rating ensures protection against dust ingress and temporary water immersion, ideal for industrial and outdoor use. The threaded coupling mechanism provides a vibration-resistant connection.



The free-hanging (in-line) mounting style allows flexible cable assembly configurations. The polyamide (nylon) shell is lightweight and durable, and the integrated strain relief protects the cable termination point from mechanical stress. The operating temperature range of -40°C to 100°C accommodates a wide variety of environmental conditions.

T3109 101 Quick Information

Product Type: Circular Connector Plug
Series: T3109
Canonical Name: Amphenol Tuchel Industrial T3109 101 4 Position Circular Connector Plug, Female Sockets
Subcategory: Circular Connector Assemblies

T3109 101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T3109 101 Estimated Pricing

Qty Low High
50+ $5.69 $5.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

T3109 101 Features

  • 4 position circular connector plug.
  • Silver-plated contacts for conductivity.
  • IP67 dust tight and waterproof rating.
  • Screw termination for secure wiring.
  • Threaded coupling for vibration resistance.

T3109 101 Applications

  • Industrial control and automation systems.
  • Outdoor power and signal connections.
  • Marine and harsh environment equipment.
  • Modular cable assemblies for machinery.

T3109 101 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the T3109 101?

The T3109 101 has a current rating of 16A.

What is the voltage rating of the T3109 101?

The T3109 101 has a voltage rating of 400V.

What mounting type does the T3109 101 use?

The T3109 101 uses free hanging (in-line) mounting.

What is the ingress protection rating of the T3109 101?

The T3109 101 has an IP67 rating, meaning it is dust tight and waterproof.

What is the operating temperature range of the T3109 101?

The T3109 101 operates from -40°C to 100°C.

What termination method does the T3109 101 use?

The T3109 101 uses screw termination.

What is the contact finish on the T3109 101?

The contact finish is silver.
