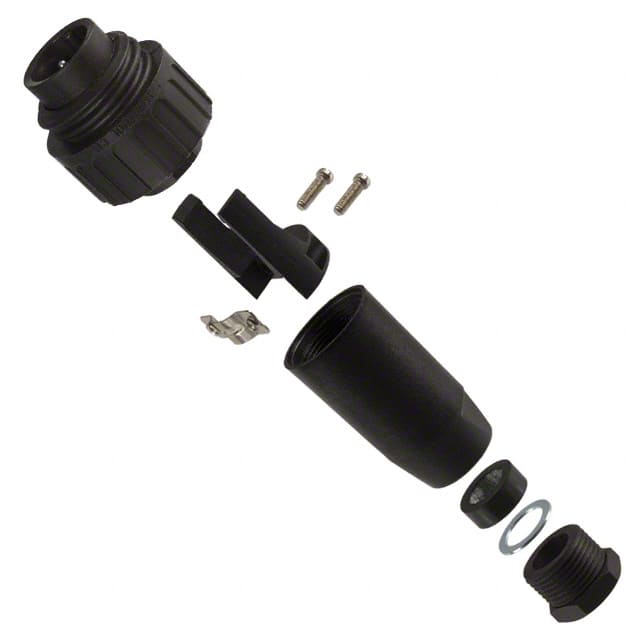

T3108 001 The T3108 001 is a 4-position male circular connector plug with screw termination, designed for industrial applications. It features IP67 protection and a nylon housing.
Mfr Part #:

T3108 001

Available from 1 distributors
Mfr Name: Amphenol Tuchel Industrial
Amphenol Tuchel Industrial
The T3108 001 is a 4-position male circular connector plug with screw termination, designed for industrial applications. It features IP67 protection and a nylon housing.
✓ Total Stock: 3 pcs
$ Price Range: $5.16

T3108 001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T3108 001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Current Rating (Amps)
Durability
Failure Rate
Fastening Type
Features
Housing Material
Ingress Protection
Lead Style
Mounting Type
Number of Positions
Operating Temperature
Primary Material
Shell Material
Termination
Voltage Rating
View Similar Products (0)

T3108 001 Description

Short technical summary and product information.

The T3108 001 is a 4-position male plug connector from Amphenol Tuchel Industrial, part of the C 16-1 series. It features screw termination and a threaded coupling mechanism for secure mating. The housing is made of polyamide 6.6, with a neoprene gasket providing IP67 protection against dust and water ingress. The silver-plated contacts are rated for 16A continuous current at 400V, accommodating 14 AWG wire. The connector is designed for free-hanging (in-line) mounting and includes a strain relief for cable support. The cable outlet diameter is 9mm. Operating temperature range is -40°C to 100°C, with a durability of 500 mating cycles. This connector is suitable for industrial applications requiring reliable power and signal connections in harsh environments.

T3108 001 Quick Information

Product Type: Circular Connector Assembly
Series: C 16-1
Canonical Name: Amphenol Tuchel Industrial T3108 001 - Circular Connector, Plug, Male Pins, 4 Position, Screw Termination, Threaded, IP67
Subcategory: Circular Connector Assembly

T3108 001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T3108 001 Estimated Pricing

Qty Low High
50+ $5.16 $5.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

T3108 001 Features

  • 4-position male plug with screw termination.
  • IP67 rated for dust and water protection.
  • Rated for 16A and 400V operation.
  • Silver-plated contacts ensure reliable connection.
  • Nylon housing with strain relief for durability.

T3108 001 Applications

  • Ideal for industrial cable connections in harsh environments.
  • Suitable for power and signal transmission.
  • Used in automation and control systems.
  • Designed for free-hanging in-line mounting.
  • Threaded coupling ensures secure mating.

T3108 001 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the T3108 001 connector have?

4 positions.

What is the current rating of this connector?

16A.

What is the voltage rating?

400V.

What is the mounting type?

Free hanging (in-line).

What is the IP rating?

IP67 - dust tight and waterproof.

What termination method does this connector use?

Screw termination.

What is the operating temperature range?

-40°C to 100°C.
