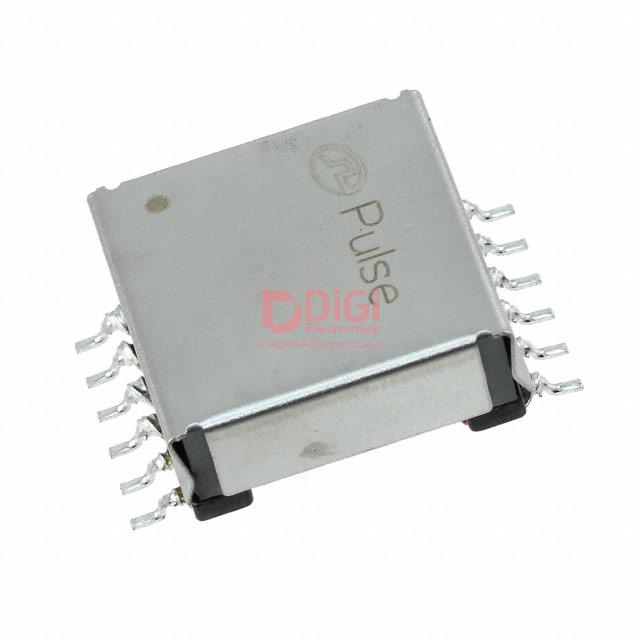

T3001T The Pulse Electronics T3001T is a pulse transformer featuring 100µH inductance and a 1:1 turns ratio. It is designed for surface mount applications.
Mfr Part #:

T3001T

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics T3001T is a pulse transformer featuring 100µH inductance and a 1:1 turns ratio. It is designed for surface mount applications.
✓ Total Stock: 500 pcs
$ Price Range: $3.00

T3001T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T3001T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Length
Mounting Type
Operating Temperature
Turns Ratio
Width
View Similar Products (0)

T3001T Description

Short technical summary and product information.

This Pulse Electronics T3001T is a pulse transformer with a specified inductance of 100µH and a turns ratio of 1:1. It is designed for surface mount applications, offering convenient integration into printed circuit boards.



The transformer operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions. Its dimensions are 7.62mm in length, 7.00mm in width, and 6.35mm in height, providing a compact footprint.



Key electrical characteristics include its inductance and turns ratio, which are critical for signal conditioning and power conversion applications. The surface mount capability facilitates automated assembly processes.

T3001T Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics T3001T Pulse Transformer
Subcategory: Pulse Transformers

T3001T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T3001T Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

T3001T Features

  • Inductance of 100 microhenries (µH).
  • Surface mount mounting type.
  • Operating temperature range from -40°C to 85°C.
  • 1:1 turns ratio for signal transfer.
  • Compact dimensions of 7.62mm by 7.00mm.

T3001T Applications

  • Suitable for pulse transformer applications in electronics.
  • Used in signal isolation and coupling circuits.
  • Ideal for high-frequency switching power supplies.
  • Applicable in RF and communication equipment.
  • Suitable for thermal and mechanical environments in industrial devices.

T3001T FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the Pulse Electronics T3001T?

The inductance of the T3001T is 100µH.

What is the turns ratio of the T3001T pulse transformer?

The turns ratio is 1:1.

What is the operating temperature range for the T3001T?

The operating temperature range is -40°C to 85°C.

How is the T3001T mounted?

The T3001T is designed for surface mount.

What are the dimensions of the T3001T?

The dimensions are 7.62mm L x 7.00mm W x 6.35mm H.
