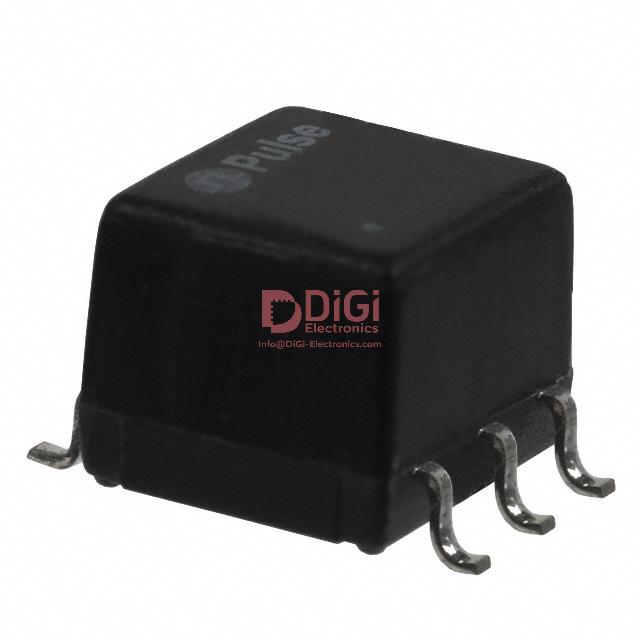

T3001NL The Pulse Electronics T3001NL is a telecom pulse transformer with 100µH inductance and a 1:1 turns ratio. It features a surface mount package.
Mfr Part #:

T3001NL

Available from 3 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics T3001NL is a telecom pulse transformer with 100µH inductance and a 1:1 turns ratio. It features a surface mount package.
✓ Total Stock: 137 pcs
$ Price Range: $3.00

T3001NL Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
115 pcs
On Request
115 pcs On Request 1 On Request On Request 1517+ On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T3001NL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Lead Spacing
Length
Mounting Type
Operating Temperature
Tape & Reel
Transformer Type
Turns Ratio
Width
View Similar Products (0)

T3001NL Description

Short technical summary and product information.

The Pulse Electronics T3001NL is a single T3/E3 telecom pulse transformer designed for reliable performance. It offers an inductance of 100µH and a turns ratio of 1:1, making it suitable for various telecommunication applications.



This transformer is designed for surface mounting, with dimensions of 7.62mm x 7.00mm and a seated height of 6.35mm. It operates within a temperature range of -40°C to 85°C, ensuring functionality in diverse environmental conditions. The component is packaged in a tube for efficient handling and integration into manufacturing processes.

T3001NL Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics T3001NL Transformer - Telecom Single T3/E3
Subcategory: Pulse Transformer

T3001NL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T3001NL Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

T3001NL Features

  • 100µH inductance for telecom applications.
  • Surface mount design for easy PCB integration.
  • Single T3/E3 transformer type for signal isolation.
  • Operates within -40°C to 85°C temperature range.
  • Compact size of 7.62mm by 7.00mm.

T3001NL Applications

  • Suitable for telecom signal isolation applications.
  • Used in high-frequency pulse transformer circuits.
  • Ideal for surface-mount telecom equipment designs.
  • Applicable in RF communication and data transmission.
  • Suitable for low-voltage, high-speed switching environments.

T3001NL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the T3001NL transformer?

The inductance value is 100 microhenries (µH).

What is the turns ratio of the T3001NL transformer?

The turns ratio is 1:1.

What is the operating temperature range of the T3001NL?

-40°C to 85°C.

What mounting type does the T3001NL use?

Surface Mount.

What is the package type of the T3001NL?

Tube.

Is the T3001NL RoHS compliant?

Yes, it is RoHS3 compliant.
