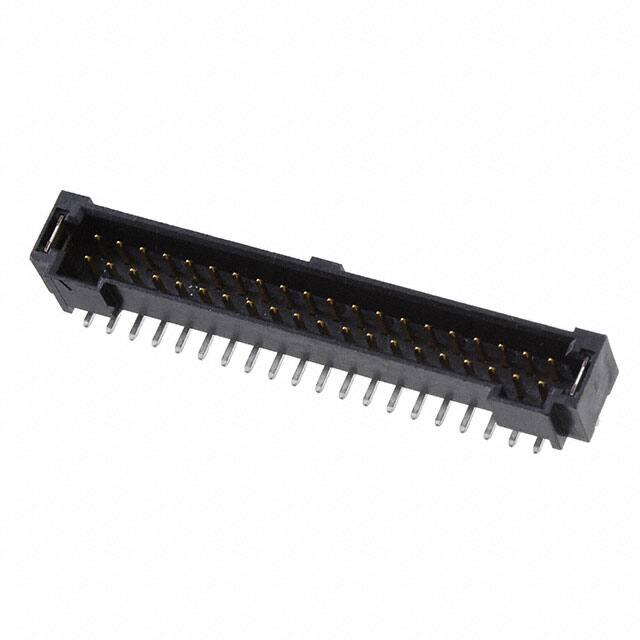

T2M-120-01-L-D-SM-WT Samtec T2M-120-01-L-D-SM-WT is a 40-position, dual row, shrouded header with 2.00mm pitch, surface mount termination, and 10µin gold on contact / matte tin on tail plating.
Mfr Part #:

T2M-120-01-L-D-SM-WT

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec T2M-120-01-L-D-SM-WT is a 40-position, dual row, shrouded header with 2.00mm pitch, surface mount termination, and 10µin gold on contact / matte tin on tail plating.
✓ Total Stock: 995 pcs
$ Price Range: $4.75 - $8.26

T2M-120-01-L-D-SM-WT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
675 pcs
On Request
675 pcs On Request 1 On Request On Request 21+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
320 pcs
On Request
320 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T2M-120-01-L-D-SM-WT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Data Rate
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

T2M-120-01-L-D-SM-WT Description

Short technical summary and product information.

The Samtec T2M-120-01-L-D-SM-WT is a 40-position, dual row, shrouded header from the T2M series. It features a 2.00mm pitch and a vertical orientation. The connector uses Samtec's Tiger Eye multi-finger contact system for high reliability in demanding environments. Contacts are made of phosphor bronze with 10µin gold on the contact area and matte tin on the tail. The insulator is black liquid crystal polymer (LCP).



This header is rated for up to 3.8A (2 pins powered) and 2.6A maximum, with a voltage rating of 350 VAC / 495 VDC. It supports data rates up to 8 Gbps and is qualified for Severe Environment Testing (SET), meeting or exceeding MIL-DTL-55302 requirements. The operating temperature range is -55°C to +125°C.



The part is surface mount with solder termination and includes features such as solder retention and a weld tab for secure attachment. It is designed for board-to-board or cable applications, mating with Samtec S2SD and S2SS cable assemblies. Standard packaging is tube (12 pieces), with tape and reel options available.

T2M-120-01-L-D-SM-WT Quick Information

Product Type: Header Connector
Series: T2M
Canonical Name: Samtec T2M-120-01-L-D-SM-WT 2.00mm Pitch 40-Position Dual Row Shrouded Header, Surface Mount, 10µin Gold/Tin, Weld Tab
Subcategory: Board-to-Board / Cable Header

T2M-120-01-L-D-SM-WT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

T2M-120-01-L-D-SM-WT Estimated Pricing

Qty Low High
1+ $8.26 $8.26
108+ $6.40 $6.40
504+ $5.92 $5.92
1,008+ $4.76 $4.76
2,004+ $4.75 $4.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

T2M-120-01-L-D-SM-WT Features

  • 40-position dual row shrouded header.
  • 2.00mm pitch with surface mount termination.
  • Tiger Eye multi-finger contact system.
  • Rated for 3.8A (2 pins powered) and 2.6A max.
  • SET qualified, meets MIL-DTL-55302.

T2M-120-01-L-D-SM-WT Applications

  • Board-to-board interconnects in rugged environments.
  • Cable-to-board connections with Tiger Eye sockets.
  • Industrial and automotive applications requiring high reliability.
  • High-speed data transmission up to 8 Gbps.

T2M-120-01-L-D-SM-WT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the T2M-120-01-L-D-SM-WT?

The pitch is 2.00mm (0.079 inches).

How many positions does this connector have?

It has 40 positions arranged in 2 rows, all loaded.

What is the current rating of this header?

The current rating is 3.8A with 2 pins powered, and 2.6A maximum.

What is the voltage rating?

The voltage rating is 350 VAC / 495 VDC maximum.

What is the mounting type?

This header is surface mount (SMT) with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

Is this connector RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified.
