| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

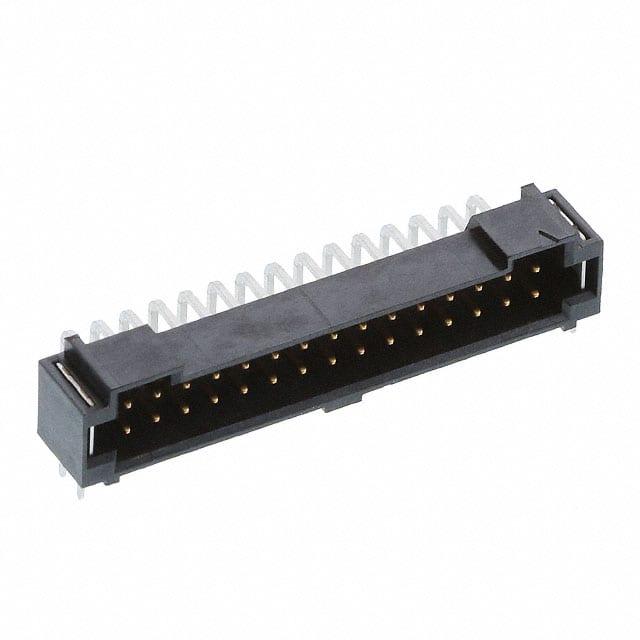

The Samtec T2M-115-01-L-D-RA-WT is a 30 position, 2 row, right angle shrouded header from the T2M series. It features a 2.00mm pitch and is designed for through hole mounting with solder termination. The connector utilizes Samtec's Tiger Eye multi-finger contact system for high reliability in demanding environments.
The header is rated for a current of 3.8A (2 pins powered) and a voltage of 350 VAC / 495 VDC. It supports data rates up to 8 Gbps. The contact material is phosphor bronze with a gold finish on the contact area (10 µ" thickness) and matte tin on the tail. The insulator is black liquid crystal polymer (LCP) with an insulation height of 7.44mm.
This connector is suitable for board-to-board or cable applications and includes a solder retention feature. It is packaged in a tube with a standard quantity of 16 pieces. The operating temperature range is -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.79 | $6.79 |
| 10+ | $6.28 | $6.28 |
| 25+ | $5.94 | $5.94 |
| 48+ | $5.29 | $5.29 |
| 112+ | $5.01 | $5.01 |
| 512+ | $4.64 | $4.64 |
| 1,008+ | $3.71 | $3.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inches).
It has 30 positions arranged in 2 rows.
The current rating is 3.8A with 2 pins powered (per datasheet). The manufacturer page lists 2.6A max.
The voltage rating is 350 VAC / 495 VDC.
Through hole, right angle.
-55°C to 125°C.
Gold on contact (10 µ" thickness) and matte tin on tail.
