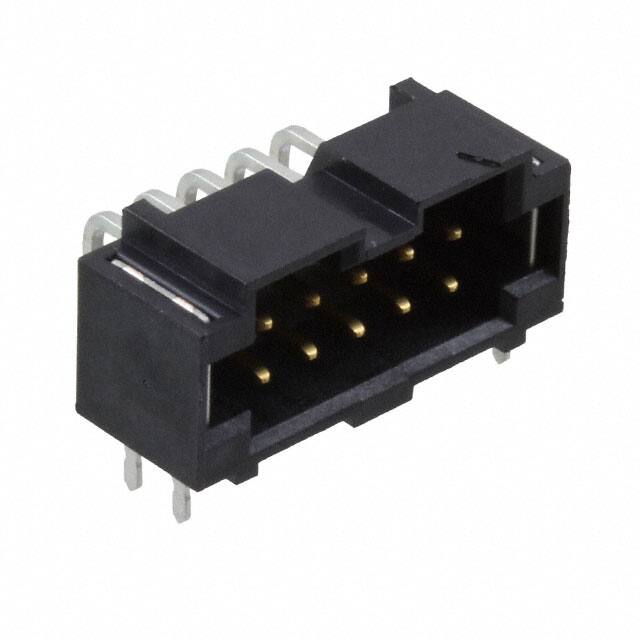

The T2M-105-01-L-D-RA-WT from Samtec is a 10-position, 2-row, 2.00mm pitch right-angle header connector. Part of the Tiger Eye series, it utilizes a multi-finger contact system for high reliability in demanding environments. The connector is shrouded with four walls and features a push-pull fastening type, making it suitable for board-to-board or cable interconnects.
Key specifications include a current rating of 2.6 A maximum (with 2 pins powered) and a voltage rating of 350 VAC / 495 VDC. The operating temperature range spans -55°C to 125°C. Contacts are made of phosphor bronze with a tin finish (10µin thickness on the mating area), and the insulator is black liquid crystal polymer (LCP).
The header is through-hole mounted with a right-angle orientation, allowing for compact designs. It includes a solder retention feature for secure attachment during assembly. The part is packaged in a tube containing 36 units.
This connector is designed to mate with Samtec's S2SD and S2SS cable assemblies and is qualified for severe environment testing, aligning with MIL-DTL-55302 testing. It is lead-free solderable and suitable for a wide range of industrial, automotive, and high-reliability applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.08 | $4.08 |
| 25+ | $3.69 | $3.69 |
| 36+ | $3.24 | $3.24 |
| 108+ | $2.64 | $2.64 |
| 2,520+ | $2.12 | $2.12 |
| 5,004+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00 mm (0.079 inches).
It has 10 positions arranged in 2 rows.
The maximum current rating is 2.6 A when 2 pins are powered.
The maximum voltage rating is 350 VAC / 495 VDC.
Through Hole, Right Angle with solder termination.
-55°C to 125°C.
The -L plating option specifies 10µ" (0.25 µm) gold on the contact area and matte tin on the tail, over phosphor bronze contacts.
