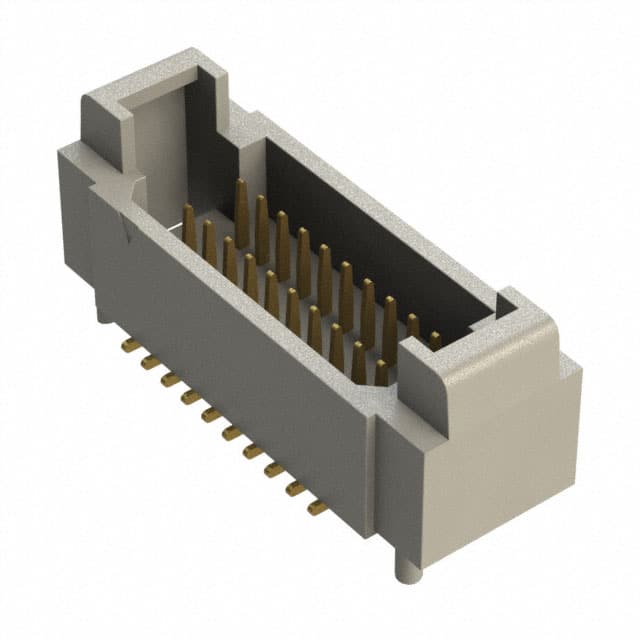

The Samtec T1M-10-GF-DV is a 20 position, 2 row, 1.00mm pitch shrouded header designed for board-to-cable/wire applications. It features a 4-wall shrouded housing with a locking ramp fastening type for secure mating. The insulator is molded from Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating and natural color.
The contacts are made of phosphor bronze with a gold finish (3µ" / 0.076µm) and a square contact shape. The header is rated for 3.3A per contact and 250VAC / 353VDC, with an operating temperature range of -55°C to 85°C. The minimum pushout force is 2.23N for signal contacts and 4.45N for weld tabs.
This component is surface mount (SMT) with solder termination and is supplied in tape and reel packaging. The insulation height is 6.80mm and row spacing is 1.96mm. All 20 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.01 | $3.01 |
| 25+ | $2.82 | $2.82 |
| 50+ | $2.68 | $2.68 |
| 100+ | $2.31 | $2.31 |
| 425+ | $2.19 | $2.19 |
| 850+ | $2.10 | $2.10 |
| 2,125+ | $1.81 | $1.81 |
| 4,675+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm.
It has 20 positions in 2 rows.
The current rating is 3.3A per contact.
250VAC and 353VDC.
Surface mount (SMT) with solder termination.
-55°C to 85°C.
Gold, 0.076µm (3µ") thickness.
