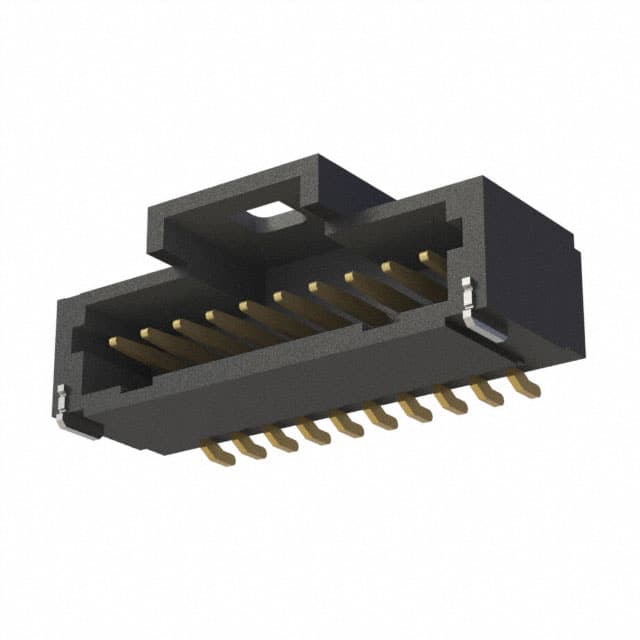

T1M-10-F-SH-L-K 10-position single row shrouded header with 1mm pitch, surface mount right angle termination. Features gold-plated phosphor bronze contacts and LCP insulator with UL94 V-0 rating.
Mfr Part #:

T1M-10-F-SH-L-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
10-position single row shrouded header with 1mm pitch, surface mount right angle termination. Features gold-plated phosphor bronze contacts and LCP insulator with UL94 V-0 rating.
✓ Total Stock: 1 pcs
$ Price Range: $1.13 - $1.49

T1M-10-F-SH-L-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

T1M-10-F-SH-L-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

T1M-10-F-SH-L-K Description

Short technical summary and product information.

The Samtec T1M-10-F-SH-L-K is a 10-position, single row, shrouded header designed for board-to-cable/wire applications. It features a 1.00mm pitch and surface mount, right angle termination, making it suitable for compact, space-constrained designs. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating.



The contacts are made of phosphor bronze with a 3µ" gold plating on the contact area and matte tin on the tail, ensuring reliable conductivity and corrosion resistance. The insulator is molded from Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating and natural color. The operating temperature range is -55°C to 85°C.



Electrical ratings include 3.3A per contact current and 250VAC/353VDC voltage rating. The header is packaged in Tape & Reel for automated assembly and includes a pick-and-place feature. The -K option indicates a polyimide film for additional insulation or protection.

T1M-10-F-SH-L-K Quick Information

Product Type: Shrouded Header, Male Pins
Series: T1M-SH-L
Canonical Name: Samtec T1M Series 10 Position 1 mm Pitch Single Row Shrouded Header, Surface Mount, Right Angle, Gold Contacts
Subcategory: Shrouded Header

T1M-10-F-SH-L-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

T1M-10-F-SH-L-K Estimated Pricing

Qty Low High
1+ $1.49 $1.49
50+ $1.39 $1.39
100+ $1.33 $1.33
500+ $1.19 $1.19
950+ $1.18 $1.18
4,750+ $1.16 $1.16
9,500+ $1.13 $1.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

T1M-10-F-SH-L-K Features

  • 10 positions in a single row with 1mm pitch.
  • Surface mount right angle termination for space savings.
  • Gold-plated contacts for reliable conductivity.
  • Shrouded 4-wall design with locking ramp.
  • Rated for 3.3A per contact and 250VAC.

T1M-10-F-SH-L-K Applications

  • Wire-to-board connections in compact devices.
  • Automated assembly with pick-and-place compatibility.
  • Applications requiring a secure locking mechanism.
  • Space-constrained PCB designs with right angle orientation.

T1M-10-F-SH-L-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the T1M-10-F-SH-L-K have?

10 positions, all loaded.

What is the pitch of this header?

1.00mm (0.039").

What is the current rating per contact?

3.3A per contact.

What is the voltage rating?

250VAC, 353VDC.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-55°C to 85°C.

What contact finish is used?

3µ" gold on contact, matte tin on tail.
