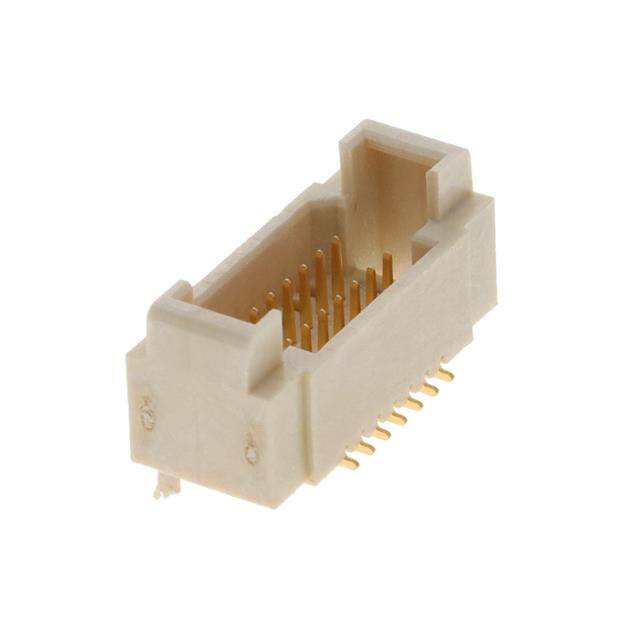

The Samtec T1M-07-GF-DV-K is a 14 position, 2 row, 1.00mm pitch surface mount header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a locking ramp fastening system for secure mating. The contacts are made of phosphor bronze with 3.00 microinch gold plating, ensuring reliable signal integrity.
This header is rated for 3.3A per contact and 250VAC/353VDC, with an operating temperature range of -55°C to 85°C. The insulator is molded from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the natural color aids visual inspection. The component is packaged in tape and reel for automated pick-and-place assembly.
Designed for vertical surface mount soldering, the T1M-07-GF-DV-K includes a pick-and-place feature for efficient manufacturing. The minimum pushout force for signal contacts is 2.23N, and for weld tabs is 4.45N, ensuring robust mechanical retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.14 | $3.14 |
| 25+ | $2.94 | $2.94 |
| 50+ | $2.80 | $2.80 |
| 100+ | $2.67 | $2.67 |
| 400+ | $2.16 | $2.16 |
| 800+ | $2.09 | $2.09 |
| 2,400+ | $1.76 | $1.76 |
| 4,800+ | $1.62 | $1.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm (0.039 inches).
It has 14 positions arranged in 2 rows, with all positions loaded.
The current rating is 3.3A per contact.
The voltage rating is 250VAC and 353VDC.
It uses surface mount technology with solder termination.
The operating temperature range is -55°C to 85°C.
The contacts are made of phosphor bronze with a 3.00 microinch gold finish.
